Specifications
Performance
Number of languages
11
Type
IP security camera
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Yes
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Design
IK code
IK08
Form factor
Dome
Product colour
White
Mounting type
Ceiling
International Protection (IP) code
IP67
Housing material
AluminiumPolycarbonate
Camera
Minimum illumination
0.06 lx
Viewing angle horizontal
87‚°
Viewing angle vertical
49‚°
Tilt angle range
15 - 90‚°
Pan range
-30 - 30‚°
Angle of rotation
175‚°
Camera shutter speed
1/32500 - 2 s
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.9 mm (1 / 2.9")
Lens system
Maximum aperture number
2
Fixed focal length
3.6 mm
Video
Image quality adjustment
BrightnessContrastSharpness
Privacy masking
Yes
Bit rate control
Variable Bit Rate (VBR)
Video compression formats
AVCH.264M-JPEGMPEG4
Maximum resolution
1280 x 720 pixels
Supported graphics resolutions
160 x 901280 x 720 (HD 720)
Supported video modes
720p
Frame rate
30 fps
Video streaming
Yes
Networking
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3afIEEE 802.3at
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Wi-Fi
No
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash)MicroSDHCMicroSDXC
Internal memory
512 MB
Flash memory
256 MB
Ports & interfaces
Interface
RJ-45
Connectivity technology
Wired
Security
Video motion detection
Yes
Security algorithms
HTTPS
IP address filtering
Yes
Password protection
Yes
Management features
Web-based management
Yes
Power
Power source type
PoE
Power consumption (max)
3.6 W
Power over Ethernet (PoE)
Yes
Power consumption (typical)
2.9 W
Operational conditions
Operating temperature (T-T)
-40 - 60 ‚°C
Storage temperature (T-T)
-40 - 65 ‚°C
Operating relative humidity (H-H)
10 - 100%
Weight & dimensions
Height
49 mm
Diameter
10.9 cm
Weight
241 g
Packaging content
Number of cameras
1
User guide
Yes
Other features
Video compression formats
AVCH.264M-JPEGMPEG4

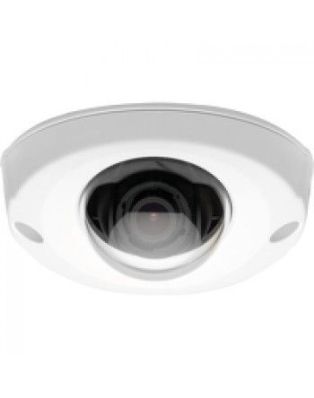

AXIS P3904-R Mk II Network Camera
