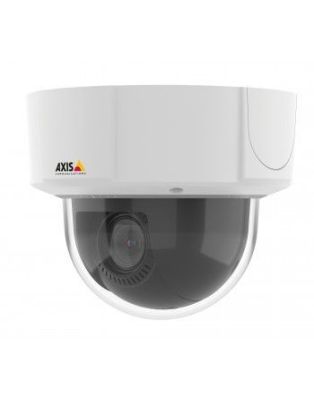

Axis M5525-E IP security camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels
In Stock
|
Performance
Infrared (IR) cut-off filter
Yes
Number of languages
11
Type
IP security camera
Connectivity technology
Wired & Wireless
PTZ control (Pan/Tilt/Zoom)
Yes
Placement supported
Indoor & outdoor
Day/night mode
Yes
Design
IK code
IK09
Form factor
Dome
Product colour
Black-White
Mounting type
Ceiling
International Protection (IP) code
IP66
Camera
Minimum illumination
0.01 lx
Viewing angle- horizontal
61.8‚°
Viewing angle- vertical
37.2‚°
Tilt angle range
0 - 90‚°
Tilt speed
150 ‚°/sec
Pan range
0 - 360‚°
Pan speed
150 ‚°/sec
Angle of rotation
180‚°
Camera shutter speed
1/66500 - 2 s
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Lens system
Auto focus
Yes
Optical zoom
10x
Digital zoom
12x
Night vision
Night vision
Yes
Video
Privacy masking
Yes
Video compression formats
H.264-M-JPEG
Maximum resolution
1920 x 1080 pixels
Frame rate
30 fps
Video streaming
Yes
Audio
Audio input channels
2
Audio system full duplex
Yes
Network
Networking standards
IEEE 802.3af-IEEE 802.3at
Streaming method
Multicast
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)-MicroSDHC-MicroSDXC
Internal memory
512 MB
Flash memory
256 MB
Ports & interfaces
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired & Wireless
Security
IP address filtering
Yes
HTTPS encryption
Yes
Power
Power source type
PoE
Power consumption (max)
13 W
Power consumption (Power over Ethernet (PoE))
6.6 W
Power over Ethernet (PoE)
Yes
Power consumption (typical)
6.3 W
Operational conditions
Operating temperature (T-T)
-20 - 50 ‚°C
Storage temperature (T-T)
-40 - 65 ‚°C
Weight & dimensions
Width
165 mm
Depth
165 mm
Height
132 mm
Weight
1.1 kg
Packaging content
Number of cameras
1
Technical details
Iris
Yes
Other features
Video compression formats
H.264-M-JPEG
Axis M5525-E IP security camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels
| Length | 16.50 in |
| Width | 16.50 in |
| Height | 13.20 in |
| Weight | 1.100000 lbs |
