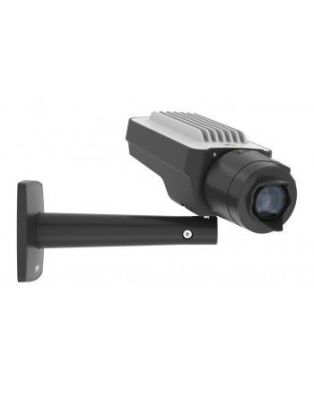

Axis Q1645 IP security camera Box Wall 1920 x 1080 pixels
In Stock
|
Specifications
Performance
Infrared (IR) cut-off filter
Yes
PTZ modes
Digital PTZ
Type
IP security camera
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Design
Form factor
Box
Product colour
BlackSilver
Mounting type
Wall
LED indicators
Yes
Housing material
Zinc
Camera
Minimum illumination
0.004 lx
Viewing angle horizontal
109‚°
Viewing angle vertical
58‚°
Camera shutter speed
1/100000 - 2 s
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2 mm (1 / 2")
Lens system
Maximum aperture number
1.5
Focal length range (f-f)
3.9 - 10 mm
Video
Noise reduction
Yes
Image quality adjustment
BrightnessContrastSaturationSharpness
Text caption overlay
Yes
Privacy masking
Yes
Image stabilizer
Yes
Video compression formats
H.264M-JPEGMPEG4
Maximum resolution
1920 x 1080 pixels
Supported graphics resolutions
320 x 1801920 x 1080 (HD 1080)
Supported video modes
1080p
Frame rate
60 fps
Video streaming
Yes
Total megapixels
2 MP
Audio
Sample rate
48 kHz
Built-in microphone
Yes
Audio system
2-way
Audio formats supported
ADPCMG.711G.726LC-AACOPUSPCM
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3afIEEE 802.3at
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Wi-Fi
No
Storage
Card reader integrated
Yes
Flash memory
512 MB
Ports & interfaces
Terminal block port
Yes
RS-485 ports
1
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Active tampering alarm
Yes
Password protection
Yes
Management features
Remotely operated
Yes
Power
Power source type
PoE
Power consumption (max)
9.5 W
Power consumption (Power over Ethernet (PoE))
9.1 W
Power over Ethernet (PoE)
Yes
Power consumption (typical)
4.5 W
Operational conditions
Operating temperature (T-T)
-20 - 60 ‚°C
Storage temperature (T-T)
-30 - 50 ‚°C
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
82 mm
Depth
210 mm
Height
66 mm
Weight
950 g
Packaging content
Number of cameras
1
Quick installation guide
Yes
Technical details
Lens type
Varifocal
Lens mount interface
CS mount
Removable IR-cut filter
Yes
Other features
Video compression formats
H.264M-JPEGMPEG4
Noise detection
Yes
Axis Q1645 IP security camera Box Wall 1920 x 1080 pixels
| Weight | 1.000000 lbs |
