Performance
Infrared (IR) cut-off filter
Yes
Number of languages
12
PTZ modes
Digital PTZ
PTZ protocols
PELCO-D
Fog proof
Yes
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Tour recording
Yes
Wide Dynamic Range (WDR)
Yes
Design
Fog proof
Yes
Form factor
Box
Product colour
Black- White
Mounting type
Wall
Housing material
Zinc
Camera
Minimum illumination
0.01 lx
Viewing angle- horizontal
121°
Viewing angle- vertical
63°
Camera shutter speed
1/66500 - 2 s
Camera pan control
Yes
Camera tilt control
Yes
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Maximum aperture number
1.2
Focal length range
2.8 - 10 mm
Video
Text caption overlay
Yes
Privacy masking
Yes
Image stabilizer
Yes
Bit rate control
Variable Bit Rate (VBR)
Video compression formats
H.264-H.265
Maximum resolution
1920 x 1080 pixels
Video formats supported
AVC-HEVC-M-JPEG-MPEG4
Supported graphics resolutions
160 x 90-1920 x 1080 (HD 1080)
Supported video modes
1080p
Frame rate
60 fps
Video streaming
Yes
Total megapixels
2 MP
Audio
Frequency range
8000 - 48000 Hz
Audio system full duplex
Yes
Audio system
2-way
Audio detection
Yes
Network
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Ethernet LAN
Yes
Storage
Card reader integrated
Yes
Flash memory
512 MB
Ports & interfaces
Terminal block port
Yes
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Connectivity technology
Wired
Security
Alert notification type
E-mail
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Active tampering alarm
Yes
Password protection
Yes
Power
Power source type
DC- PoE
Power consumption (max)
9.6 W
Power consumption (Power over Ethernet (PoE))
9.6 W
Power consumption (typical)
5.1 W
DC-in jack
Yes
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Weight & dimensions
Width
80 mm
Depth
214 mm
Height
57 mm
Weight
750 g

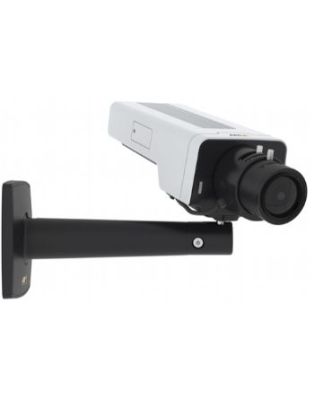

Axis P1375 Barebone IP security camera Box Wall 1920 x 1080 pixels
Weight | 1.000000 lbs |
