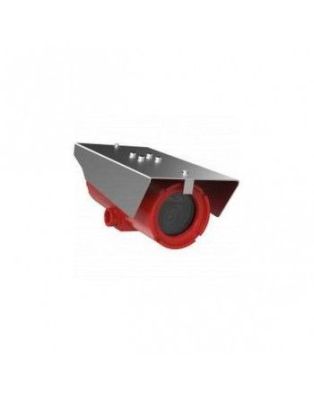

F101-A XF Q1785 Explosion-Protected Network Camera
In Stock
|
Specifications
Performance
Fog proof
Yes
Type
IP security camera
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Yes
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Design
Fog proof
Yes
Form factor
Bullet
Product colour
AluminiumRed
Mounting type
Wall
Protection features
Explosion proof
International Protection (IP) code
IP66
Housing material
Aluminium
Camera
Minimum illumination
0.03 lx
Viewing angle horizontal
60‚°
Viewing angle vertical
39‚°
Camera shutter speed
1/66500 - 1 s
Camera pan control
Yes
Camera tilt control
Yes
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
4
Auto focus
Yes
Minimum aperture number
1.4
Zoom capability
Yes
Optical zoom
32x
Digital zoom
12x
Focal length range (f-f)
4.3 - 13.7 mm
Video
Image quality adjustment
BrightnessContrastSaturationSharpness
Text caption overlay
Yes
Privacy masking
Yes
Image stabilizer
Yes
Bit rate control
Variable Bit Rate (VBR)
Maximum resolution
1920 x 1080 pixels
Video formats supported
AVCH.264M-JPEGMPEG4
Supported graphics resolutions
160 x 901920 x 1080 (HD 1080)
Supported video modes
1080p
Frame rate
60 fps
Video streaming
Yes
Total megapixels
2 MP
Network
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1xIEEE 802.3afIEEE 802.3at
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Ethernet LAN
Yes
Storage
ROM capacity
1000 MB
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)MicroSDHCMicroSDXC
Flash memory
512 MB
Ports & interfaces
Terminal block port
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Alert notification type
E-mail
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Active tampering alarm
Yes
Password protection
Yes
Management features
Remotely operated
Yes
Power
Power source type
ACDCPoE
Power consumption (max)
25 W
Power consumption (Power over Ethernet (PoE))
8.7 W
AC input voltage
12-30 V
Power consumption (typical)
7.7 W
Operational conditions
Operating temperature (T-T)
-50 - 60 ‚°C
Storage temperature (T-T)
-40 - 65 ‚°C
Operating relative humidity (H-H)
10 - 100%
Weight & dimensions
Width
182 mm
Depth
352 mm
Height
146 mm
Weight
6.2 kg
Packaging content
Number of cameras
1
Sun shield included
Yes
Memory card included
MicroSDXC
Included memory card size
128 GB
Manual
Yes
F101-A XF Q1785 Explosion-Protected Network Camera
| Length | 35.20 in |
| Width | 18.20 in |
| Height | 14.60 in |
| Weight | 6.200000 lbs |
