Performance
Preset points
Yes
Infrared (IR) cut-off filter
Yes
Fog proof
Yes
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Alarm input/output
Yes
Design
Weatherproof
Yes
IK code
IK10
Fog proof
Yes
Form factor
Dome
Product colour
Black- White
Mounting type
Ceiling/wall
Protection features
Shock resistant
International Protection (IP) code
IP66
Housing material
Aluminium
Camera
Minimum illumination
0.02 lx
Viewing angle- horizontal
58.7°
Viewing angle- vertical
35.7°
Tilt angle range
0 - 180°
Tilt speed
350 °/sec
Pan range
0 - 360°
Pan speed
350 °/sec
Camera shutter speed
1/66500 - 2 s
Camera pan control
Yes
Camera tilt control
Yes
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
4
Auto focus
Yes
Minimum aperture number
1.4
Zoom capability
Yes
Optical zoom
32x
Digital zoom
12x
Focal length range
4.3 - 137.6 mm
Video
Text caption overlay
Yes
Privacy masking
Yes
Image stabilizer
Yes
Bit rate control
Variable Bit Rate (VBR)
Maximum resolution
1920 x 1080 pixels
Supported video modes
1080p
Frame rate
60 fps
Video streaming
Yes
Audio
Sample rate
48 kHz
Audio system
2-way
Audio formats supported
ADPCM-LC-AAC-LPCM-PCM
Audio detection
Yes
Network
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x-IEEE 802.3at
Streaming method
Multicast
Ethernet LAN
Yes
Storage
Card reader integrated
Yes
Compatible memory cards
SD-SDHC-SDXC
Internal memory
1024 MB
Flash memory
512 MB
Ports & interfaces
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Connectivity technology
Wired
Security
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Password protection
Yes
Power
Power source type
DC- PoE
Power consumption (max)
19 W
Power consumption (typical)
10.5 W
DC-in jack
Yes
Operational conditions
Operating temperature (T-T)
-30 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 100%
Weight & dimensions
Width
188 mm
Depth
188 mm
Height
217 mm
Weight
2.5 kg

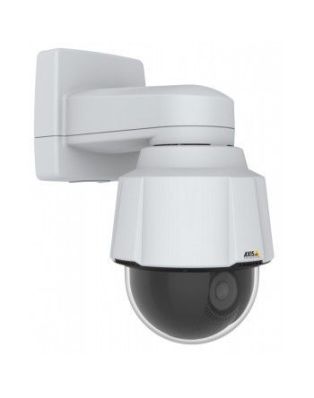

AXIS P5655-E PTZ Network Camera
Length | 18.80 in |
Width | 18.80 in |
Height | 21.70 in |
Weight | 2.500000 lbs |
