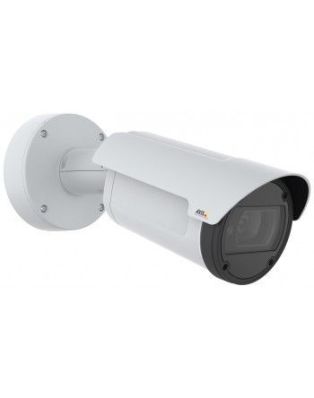

Axis Q1798-LE IP security camera Outdoor Bullet Ceiling/Wall 3712 x 2784 pixels
In Stock
|
Specifications
Performance
Infrared (IR) cut-off filter
Yes
Type
IP security camera
Connectivity technology
Wired
Placement supported
Outdoor
Day/night mode
Yes
Design
IK code
IK10
Form factor
Bullet
Product colour
White
Mounting type
Ceiling/Wall
International Protection (IP) code
IP67
Housing material
Plastic
Camera
Minimum illumination
0.006 lx
Viewing angle horizontal
90‚°
Viewing angle vertical
49‚°
Camera shutter speed
1/45500 - 2 s
Image sensor
Sensor type
CMOS
Optical sensor size
101.6 / 3 mm (4 / 3")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
1.7
Auto focus
Yes
Minimum aperture number
4
Optical zoom
4x
Focal length range (f-f)
12 - 48 mm
Video
Image quality adjustment
BrightnessContrastSaturationSharpness
Bit rate control
Variable Bit Rate (VBR)
Video compression formats
AVCH.264H.265HEVCM-JPEGMPEG4
Maximum resolution
3712 x 2784 pixels
Supported graphics resolutions
3840 x 2160
Frame rate
30 fps
Video streaming
Yes
Total megapixels
10 MP
Audio
Voice codecs
G.711G.726PCM
Network
Bluetooth
No
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.1xIEEE 802.3at
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Wi-Fi
No
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
MicroSD (TransFlash)MicroSDHCMicroSDXC
Internal memory
2048 MB
Flash memory
512 MB
Ports & interfaces
Terminal block port
Yes
Microphone in
Yes
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Security algorithms
EAP-TLS
IP address filtering
Yes
HTTPS encryption
Yes
Password protection
Yes
Power
Power source type
ACDCPoE
Power consumption (Power over Ethernet (PoE))
24 W
AC input voltage
20 - 24 V
Power consumption (typical)
13.3 W
Operational conditions
Operating temperature (T-T)
-40 - 60 ‚°C
Storage temperature (T-T)
-40 - 65 ‚°C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Length
36 cm
Diameter
14.7 cm
Weight
2.55 kg
Packaging content
Number of cameras
1
Other features
Video compression formats
AVCH.264H.265HEVCM-JPEGMPEG4
Axis Q1798-LE IP security camera Outdoor Bullet Ceiling/Wall 3712 x 2784 pixels
