Performance
Preset points
Yes
Infrared (IR) cut-off filter
Yes
Type
IP security camera
Connectivity technology
Wired
PTZ control
Yes
Placement supported
Outdoor
Tour recording
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Design
IK code
IK10
Form factor
Dome
Product colour
White
Mounting type
Ceiling/wall
International Protection (IP) code
IP66
Housing material
Aluminium
Camera
Minimum illumination
0.01 lx
Viewing angle- horizontal
77°
Viewing angle- vertical
43.1°
Tilt angle range
0 - 180°
Tilt speed
350 °/sec
Pan range
0 - 360°
Pan speed
350 °/sec
Camera shutter speed
1/66500 - 2 s
Camera pan control
Yes
Camera tilt control
Yes
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Number of sensors
1
Lens system
Number of lenses
1
Maximum aperture number
1.6
Auto focus
Yes
Minimum aperture number
4.5
Zoom capability
Yes
Optical zoom
21x
Digital zoom
12x
Focal length range
4 - 8.6 mm
Video
Text caption overlay
Yes
Privacy masking
Yes
Image stabilizer
Yes
Maximum resolution
1280 x 720 pixels
Frame rate
60 fps
Video streaming
Yes
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x-IEEE 802.3at
Quality of Service (QoS) support
Yes
Ethernet LAN
Yes
Wi-Fi
No
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
SD-SDHC-SDXC
Internal memory
1024 MB
Flash memory
512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Security
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Password protection
Yes
Power
Power source type
AC- PoE
Power consumption (max)
37 W
AC input voltage
100 - 240 V
Operational conditions
Operating temperature (T-T)
-30 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Height
217 mm
Diameter
18.8 cm
Weight
2.5 kg

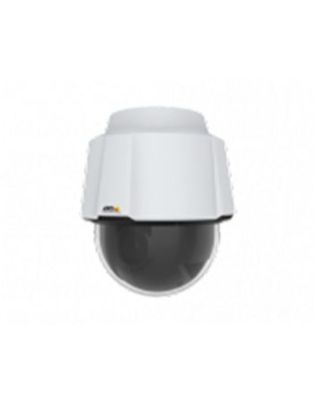

AXIS P5654-E PTZ Network Camera
Weight | 1.000000 lbs |
