Video
Video compression formats
H.264-M-JPEG-MPEG4
PAL resolutions
720 x 576 pixels
NTSC resolutions
720 x 480 pixels
MPEG-4 frame rate
60 fps
Motion JPEG frame rate
60 fps
Maximum video resolution
720 x 576 pixels
Maximum frame rate
60 fps
Channels quantity
1 channels
Audio
Technical details
Security features
HTTPS- IEEE 802.1X
Safety
FCC- UL
Angle of rotation
270°
Resolution
720 x 576 pixels
PTZ control
Yes
Internal memory
256 MB
Flash memory
128 MB
Product colour
Black
Security
Password protection type
Yes
Audio detection
Yes
Network
Wi-Fi
No
Quality of Service (QoS) support
Yes
Power over Ethernet (PoE)
Yes
Copper ethernet cabling technology
100BASE-TX-10GBASE-T
Ports & interfaces
RS-485 ports
1
RS-422 ports
1
Microphone in
Yes
Line-out
Yes
Line-in
Yes
I/O terminal ports
4
Ethernet LAN (RJ-45) ports
1
BNC input ports
1
Weight & dimensions
Weight
520 g
Dimensions (WxDxH)
109 x 172 x 37 mm
Power
Power requirements
8-20 V DC
Power consumption (typical)
5.3 W
Operational conditions
Storage temperature (T-T)
0 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 85%

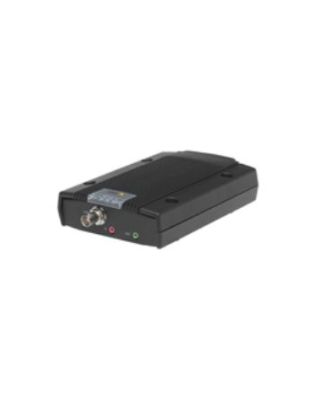

Axis Q7411 video servers/encoder 720 x 576 pixels 60 fps
Weight | 1.080000 lbs |
