Specifications
Performance
Preset points
Yes
Infrared (IR) cut-off filter
Yes
Type
IP security camera
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Yes
Day/night mode
Yes
Design
Form factor
Bullet
Product colour
White
Mounting type
Ceiling/Wall
Camera
Minimum illumination
0.5 lx
Viewing angle horizontal
78.6‚°
Viewing angle vertical
40.9‚°
Camera shutter speed
1 - 1/16000 s
Progressive scan
Yes
Image sensor
Sensor type
CMOS
Progressive scan
Yes
Optical sensor size
25.4 / 4.85 mm (1 / 4.85")
Lens system
Maximum aperture number
2.6
Auto focus
Yes
Zoom capability
Yes
Optical zoom
3.5x
Digital zoom
4x
Focal length range (f-f)
2.25 - 7.88 mm
Night vision
Night vision
Yes
Video
Full HD
Yes
Automatic gain control
Yes
Privacy masking
Yes
Video compression formats
H.264
Maximum resolution
1920 x 1080 pixels
Frame rate
30 fps
Total megapixels
2.1 MP
Audio
Voice codecs
G.711Mu
Signal-to-Noise Ratio (SNR)
62 dB
Frequency range
50 - 16000 Hz
Built-in microphone
Yes
Audio system full duplex
Yes
Networking
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af
Number of users
31 user(s)
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Wi-Fi
No
Storage
Card reader integrated
Yes
Built-in HDD
No
Ports & interfaces
Headphone outputs
1
Interface
RJ-45
Connectivity technology
Wired
Security
Alert notification type
E-mail
Video motion detection
Yes
Security algorithms
EAP-MD5EAP-PEAPEAP-TLSEAP-TTLSIPSECSSL/TLS
Password protection type
SupervisorUser
Management features
Web-based management
Yes
Power
Power source type
PoE
Power consumption (Power over Ethernet (PoE))
4.8 W
Power over Ethernet (PoE)
Yes
Operational conditions
Operating temperature (T-T)
-10 - 50 ‚°C
Storage temperature (T-T)
-30 - 60 ‚°C
Operating relative humidity (H-H)
5 - 85%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
32 mm
Depth
117 mm
Height
54 mm
Weight
180 g
Packaging content
Number of cameras
1
Resource CD
Yes
User guide
Yes
Other features
Video compression formats
H.264

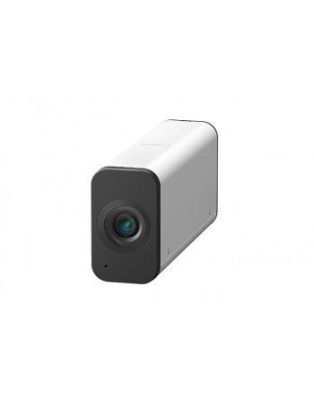

Canon VB-S910F IP security camera Bullet Ceiling/Wall 1920 x 1080 pixels
