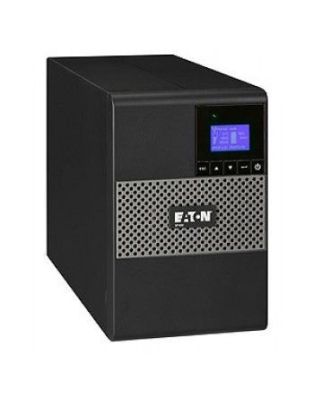

Eaton 5P1150I uninterruptible power supply (UPS) Line-Interactive 1150 VA 770 W 8 AC outlet(s)
In Stock
|
| Specifications | |
|---|---|
| Power | |
| Output power | 770 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 0.98 |
| Output power capacity | 1150 VA |
| ECO mode | No |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Noise level | 40 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power | 770 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 294 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 0.98 |
| Noise level | 40 dB |
| Output power capacity | 1150 VA |
| ECO mode | No |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 12 min |
| Typical backup time at full load | 4 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Safety | IEC/EN 62040-1 UL 1778 |
| Display | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 ‚°C |
| Technical details | |
| Output frequency | 50/60 Hz |
| Weight & dimensions | |
| Weight | 11.1 kg |
| Width | 150 mm |
| Height | 230 mm |
| Depth | 345 mm |
| Packaging data | |
| Bundled software | Intelligent Power Software suite |
| Management card included | No |
| Certificates | |
| Safety | IEC/EN 62040-1 UL 1778 |
| Other features | |
| Input connection type | IEC C14 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Mac compatibility | No |
| Packaging content | |
| Bundled software | Intelligent Power Software suite |
Eaton 5P1150I uninterruptible power supply (UPS) Line-Interactive 1150 VA 770 W 8 AC outlet(s)
| Weight | 1.000000 lbs |
