Scanning

Output greyscale depth

8 bit

Maximum scan size

305 x 4060 mm

Optical scanning resolution

600 x 600 DPI

Colour scanning

Yes

Duplex scanning

Yes

Input colour depth

48 bit

Output colour depth

24 bit

ADF scan speed (b/w- A4)

60 ppm

Sensor type

Dual CCD

Light source

RGB LED

Scan file formats

DOC- JPEG- PDF- PNG- RTF- TIFF- XLS

Daily duty cycle (max)

25000 pages

Minimum scan size

63.5 x 71.1

Design

Built-in display

Yes

Touchscreen

Yes

Scanner type

Flatbed & ADF scanner

Display diagonal

8.89 cm (3.5")

Display

LCD

Product colour

Black- White

Colour display

Yes

Performance

Barcode reader

Yes

Sensor type

Dual CCD

Light source

RGB LED

Scan file formats

DOC- JPEG- PDF- PNG- RTF- TIFF- XLS

Daily duty cycle (max)

25000 pages

Scan drivers

ISIS-TWAIN-WIA

Supported network protocols

TCP/IP- DHCP

Scanning noise level

60 dB

Input capacity

Auto document feeder (ADF) input capacity

300 sheets

Paper handling

Maximum ISO A-series paper size

Auto Document Feeder (ADF) media weight

27 - 433 g/mÂ²

Ports & interfaces

USB port

Yes

USB version

3.2 Gen 1 (3.1 Gen 1)

Software

Windows operating systems supported

Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 IoT Enterprise-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64

Linux operating systems supported

Ubuntu 16.04-Ubuntu 18.04 LTS

Server operating systems supported

Windows Server 2012 x64-Windows Server 2016 x64-Windows Server 2019

Bundled software

Capture Pro Limited Edition Smart Touch

Scan drivers

ISIS-TWAIN-WIA

Sound emission

Scanning noise level

60 dB

Power

Power consumption (typical)

50 W

Power consumption (standby)

0.3 W

Input voltage

100 - 240 V

Power supply type

Power consumption (sleep)

4 W

AC input frequency

50 - 60 Hz

System requirements

Recommended system requirements

Intel Core i3 3.5 GHz+- USB port 3.0/2.0- 3.43 GB RAM+

Windows operating systems supported

Linux operating systems supported

Ubuntu 16.04-Ubuntu 18.04 LTS

Server operating systems supported

Windows Server 2012 x64-Windows Server 2016 x64-Windows Server 2019

Display

Touchscreen

Yes

Display diagonal

8.89 cm (3.5")

Display

LCD

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10-100-1000 Mbit/s

Supported network protocols

TCP/IP- DHCP

Technical details

Scanner type

Flatbed & ADF scanner

Product colour

Black- White

Linear (1D) barcodes supported

Codabar-Code 128-Code 3 of 9-EAN-13-EAN-8-Interleaved 2 of 5-PDF417-UPC-A-UPC-E

Sustainability certificates

ENERGY STAR- EPEAT Gold

Operational conditions

Operating temperature (T-T)

10 - 35 Â°C

Operating relative humidity (H-H)

15 - 80%

Certificates

Certification

S mark- RCM- cTUVus & ICES-003- CCC- CE- GS Mark- BIS- VCCI- NOM- EAC- KS- BSMI

Weight & dimensions

Width

457.2 mm

Depth

370.8 mm

Height

254 mm

Weight

16.8 kg

Packaging content

Bundled software

Capture Pro Limited Edition Smart Touch

Other features

Ethernet LAN

Yes

Ethernet LAN data rates

10-100-1000 Mbit/s

Scanner type

Flatbed & ADF scanner

Recommended system requirements

Intel Core i3 3.5 GHz+- USB port 3.0/2.0- 3.43 GB RAM+

Minimum scan size

63.5 x 71.1

Length	37.08 in
Width	45.72 in
Height	25.40 in
Weight	16.800000 lbs

Morgan Arabia Trading Company

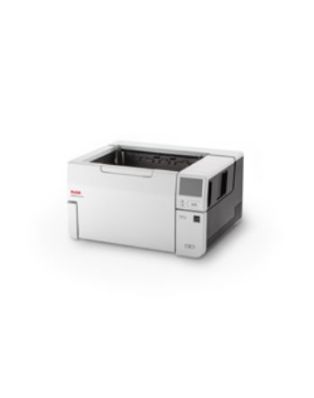

S3060F SCANNER
