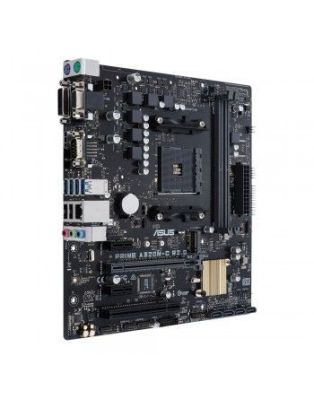

ASUS PRIME A320M-C R2.0 motherboard Socket AM4 Micro ATX AMD A320
In Stock
|
Internal I/O
Number of M.2 (M) slots
1
Front panel connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA connectors
4
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD A320
HDMI version
1.4b
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
HDD size
2.5/3.5"
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64
Motherboard chipset family
AMD
Motherboard chipset
AMD A320
RAID levels
0-1-10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD A- AMD Athlon X4- AMD Ryzen 3- 2nd Generation AMD Ryzen™ 3- AMD Ryzen 3 3rd Gen- AMD Ryzen 5- 2nd Generation AMD Ryzen™ 5- 3rd Generation AMD Ryzen 5- AMD Ryzen 7- 2nd Generation AMD Ryzen™ 7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2933-3200 MHz
Maximum internal memory
32 GB
Unbuffered memory
Yes
Storage controllers
Number of HDDs supported
4
HDD size
2.5/3.5"
Supported storage drive types
HDD & SSD
RAID levels
0-1-10
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
Microphone in
Yes
Headphone outputs
1
HDMI version
1.4b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
COM ports quantity
1
Network
Ethernet LAN
Yes
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64
Motherboard chipset family
AMD
Motherboard chipset
AMD A320
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 2.x) slots
2
PCI slots
1
PCI Express x16 slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
16 Mbit
ACPI version
6.1
System Management BIOS (SMBIOS) version
3.0
Desktop Management Interface (DMI) version
3.0
Software
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64
Drivers included
Yes
Weight & dimensions
Width
244 mm
Depth
236 mm
Packaging content
Manual
Yes
Drivers included
Yes
Cables included
SATA
Other features
HDD size
2.5/3.5"
ASUS PRIME A320M-C R2.0 motherboard Socket AM4 Micro ATX AMD A320
| Weight | 0.890000 lbs |
