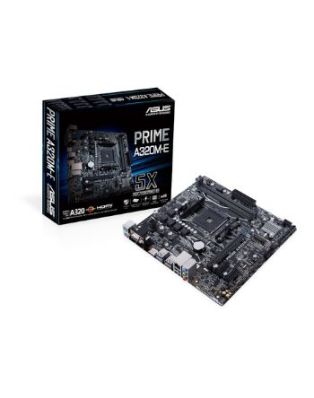

ASUS PRIME A320M-E motherboard Socket AM4 Micro ATX AMD A320
In Stock
|
Internal I/O
Number of M.2 (M) slots
1
Front panel connector
Yes
Audio connector
Yes
12V power connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of EATX power connectors
1
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD A320
HDMI version
1.4b
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64
Motherboard chipset family
AMD
Motherboard chipset
AMD A320
RAID levels
0-1-10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Compatible processor series
AMD A- AMD Athlon- AMD Athlon X4- AMD Ryzen 3- 2nd Generation AMD Ryzen™ 3- AMD Ryzen 3 3rd Gen- AMD Ryzen 5- 2nd Generation AMD Ryzen™ 5- 3rd Generation AMD Ryzen 5- AMD Ryzen 7- 2nd Generation AMD Ryzen™ 7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2933-3200 MHz
Maximum internal memory
32 GB
Unbuffered memory
Yes
Storage controllers
RAID levels
0-1-10
Graphics
Maximum graphics adapter memory
2048 MB
Maximum resolution
4096 x 2160 pixels
Graphics adapter family
AMD
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
HDMI version
1.4b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Wake-on-LAN ready
Yes
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64
Motherboard chipset family
AMD
Motherboard chipset
AMD A320
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 2.x) slots
2
PCI Express x16 slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
6.1
Clear CMOS button
Yes
Power
Power source type
ATX
Video
Maximum graphics adapter memory
2048 MB
Maximum resolution
4096 x 2160 pixels
Graphics adapter family
AMD
Software
Windows operating systems supported
Windows 10 Education x64-Windows 10 Enterprise x64-Windows 10 Home x64-Windows 10 Pro x64
Drivers included
Yes
Weight & dimensions
Width
226 mm
Depth
221 mm
Packaging content
Manual
Yes
Drivers included
Yes
Cables included
SATA
ASUS PRIME A320M-E motherboard Socket AM4 Micro ATX AMD A320
| Weight | 0.850000 lbs |
