Internal I/O
Number of M.2 (M) slots
3
Front panel connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
8
Number of EATX power connectors
2
Number of chassis fan connectors
3
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel® X299
Supported processor sockets
LGA 2066
Cooling type
Passive
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
HDD size
2.5/3.5"
Supported storage drive types
HDD & SSD
Intel Extreme Memory Profile (XMP)
Yes
Motherboard chipset family
Intel
Motherboard chipset
Intel® X299
RAID levels
0-1-5-10
Supported processor sockets
LGA 2066
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Core™ X-series
Supported processor sockets
LGA 2066
Maximum number of SMP processors
1
Processor socket
LGA 2066 (Socket R4)
Processor lithography
14 nm
Memory
Number of memory slots
8
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Non-ECC
Yes
Maximum internal memory
256 GB
Unbuffered memory
Yes
Storage controllers
HDD size
2.5/3.5"
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-5-10
Graphics
Graphics adapter family
Intel
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
1
WiFi-AP antenna jack
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
LAN controller
Intel® I219-V
Ethernet interface type
Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5
Features
Power source type
ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel® X299
Supported processor sockets
LGA 2066
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC1220
Expansion slots
Number of M.2 (M) slots
3
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
3
Weight & dimensions
Width
305 mm
Depth
277 mm

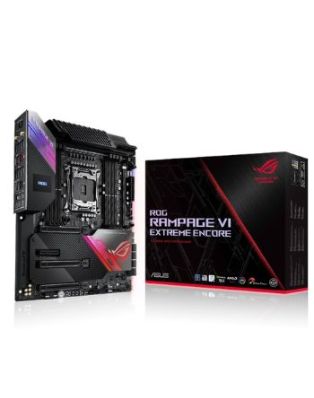

ASUS ROG Rampage VI Extreme EnCoremotherboard LGA 2066 ATX Intel X299
Weight | 1.000000 lbs |
