Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD X570
Supported processor sockets
Socket AM4
Cooling type
Passive
Motherboard form factor
Mini DTX
Component for
mini PC
Number of mounting holes
4
Audio
Audio output channels
8.0 channels
Performance
Number of HDDs supported
4
HDD size
2.5/3.5"
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10
Motherboard chipset family
AMD
Motherboard chipset
AMD X570
RAID levels
0-1-10
Supported processor sockets
Socket AM4
Cooling type
Passive
Audio output channels
8.0 channels
Motherboard form factor
Mini DTX
Component for
mini PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Compatible processor series
2nd Generation AMD Ryzen™ 3- AMD Ryzen 3 3rd Gen- 2nd Generation AMD Ryzen™ 5- 3rd Generation AMD Ryzen 5- 2nd Generation AMD Ryzen™ 7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Supported processor sockets
Socket AM4
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
2133-2400-2666-2800-2933-3000-3200-3400-3466-3600-3733-3866-4000-4133-4266-4400-4600-4800 MHz
Supported memory module capacities
4GB- 8GB- 16GB- 32GB
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Number of HDDs supported
4
HDD size
2.5/3.5"
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
RAID levels
0-1-10
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Audio connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Power fan connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
8
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)
LAN controller
Intel® I211-AT
Ethernet interface type
10 Gigabit Ethernet- Fast Ethernet- Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.0
Features
Power source type
ATX
Number of mounting holes
4
Windows operating systems supported
Windows 10
Motherboard chipset family
AMD
Motherboard chipset
AMD X570
Supported processor sockets
Socket AM4
Cooling type
Passive
Audio output channels
8.0 channels
Motherboard form factor
Mini DTX
Component for
mini PC
Audio chip
SupremeFX S1220A
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS switch button
Yes
BIOS memory size
256 Mbit
ACPI version
6.2
System Management BIOS (SMBIOS) version
3.2
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10
Drivers included
Yes
Weight & dimensions
Width
203 mm
Depth
170 mm
Packaging content
Quick installation guide
Yes
Drivers included
Yes
Other features
HDD size
2.5/3.5"
Quick installation guide
Yes
BIOS switch button
Yes

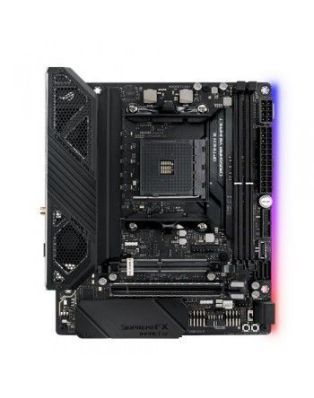

ASUS ROG Crosshair VIII Impact motherboard Socket AM4 Mini DTX AMD X570
Weight | 1.950000 lbs |
