Internal I/O
Number of M.2 (M) slots
1
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
S/PDIF out connector
Yes
Number of SATA III connectors
6
Number of COM connectors
1
Number of chassis fan connectors
1
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B460
Parallel processing technology support
Not supported
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
Motherboard chipset
Intel B460
RAID levels
0-1-5-10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium®
Maximum number of SMP processors
1
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
RAID levels
0-1-5-10
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Wake-on-LAN ready
Yes
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset family
Intel
Motherboard chipset
Intel B460
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
BIOS
Clear CMOS jumper
Yes
Weight & dimensions
Width
226 mm
Depth
211 mm
Packaging content
Cables included
SATA

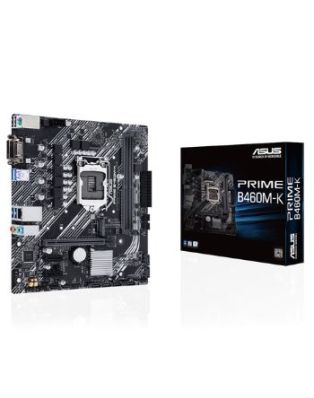

ASUS PRIME B460M-K Micro ATX Intel B460
| Weight | 0.830000 lbs |
