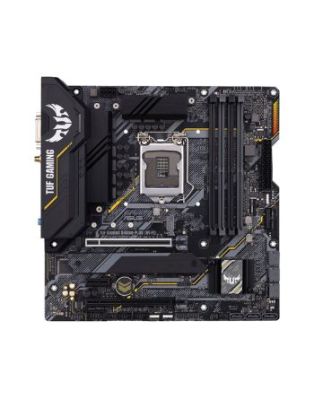

ASUS TUF GAMING B460M-PLUS (WI-FI) Intel B460 LGA 1200 micro ATX
In Stock
|
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B460
Parallel processing technology support
2-Way CrossFireX
HDMI version
1.4
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel B460
RAID levels
0-1-5-10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel® Pentium®
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-5-10
Graphics
Parallel processing technology support
2-Way CrossFireX
Internal I/O
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
6
Number of EATX power connectors
1
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
PS/2 ports quantity
1
HDMI version
1.4
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6 (802.11ax)
LAN controller
Intel® I219-V
Ethernet interface type
Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.1
Features
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel B460
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC S1200A
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Software
Windows operating systems supported
Windows 10
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
ASUS TUF GAMING B460M-PLUS (WI-FI) Intel B460 LGA 1200 micro ATX
| Weight | 1.360000 lbs |
