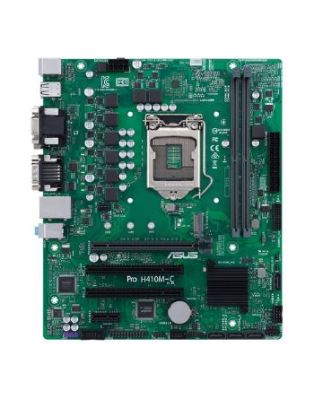

ASUS PRO H410M-C/CSM - Corporate Stable Model, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, COM P
In Stock
|
Internal I/O
Number of M.2 (M) slots
1
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H410
Supported processor sockets
LGA 1200 (Socket H5)
On-board graphics adapter
Yes
HDMI version
1.4b
Motherboard form factor
micro ATX
Component for
PC
Sustainability certificates
RoHS
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel H410
Supported processor sockets
LGA 1200 (Socket H5)
Certification
ICC- CE- FCC- NIST SP 800-147
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium®
Supported processor sockets
LGA 1200 (Socket H5)
Maximum number of SMP processors
1
Processor socket
LGA 1200
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
Graphics
On-board graphics adapter
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
Microphone in
Yes
Headphone outputs
1
HDMI version
1.4b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
COM ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Wake-on-LAN ready
Yes
LAN controller
Intel® I219-V
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel H410
Supported processor sockets
LGA 1200 (Socket H5)
Certification
ICC- CE- FCC- NIST SP 800-147
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI slots
2
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
Power
Power source type
ATX
Certificates
Certification
ICC- CE- FCC- NIST SP 800-147
Software
Windows operating systems supported
Windows 10
Weight & dimensions
Width
244 mm
Depth
208 mm
Packaging content
Cables included
SATA
ASUS PRO H410M-C/CSM - Corporate Stable Model, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, COM P
| Weight | 1.000000 lbs |
