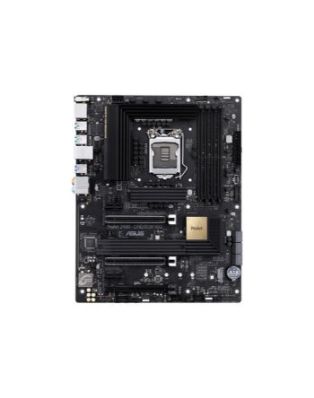

ASUS ProArt Z490-CREATOR 10G LGA 1200 ATX Intel Z490
In Stock
|
Internal I/O
Number of M.2 (M) slots
2
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
6
Number of EATX power connectors
1
Number of chassis fan connectors
3
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z490
Parallel processing technology support
3-Way CrossFireX
HDMI version
1.4b
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
8.0 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z490
RAID levels
0-1-5-10
Audio output channels
8.0 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium®
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933-3000-3200-3300-3333-3400-3466-3600-3733-3866-4000-4133-4266-4400-4500-4600-4800 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-5-10
Graphics
Parallel processing technology support
3-Way CrossFireX
Maximum resolution
4096 x 2304 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
DisplayPort version
1.4
Thunderbolt ports quantity
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI version
1.4b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I225-V
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z490
Audio output channels
8.0 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
SupremeFX S1220A
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
3
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
Video
Maximum resolution
4096 x 2304 pixels
Software
Windows operating systems supported
Windows 10 x64
Weight & dimensions
Width
305 mm
Depth
234 mm
Packaging content
Cables included
SATA
ASUS ProArt Z490-CREATOR 10G LGA 1200 ATX Intel Z490
| Weight | 2.010000 lbs |
