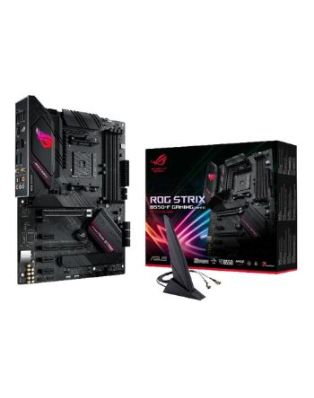

ASUS ROG STRIX B550-F GAMING(WI-FI) Socket AM4 ATX
In Stock
|
Internal I/O
Number of M.2 (M) slots
2
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
6
Number of EATX power connectors
1
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
PC health monitoring
CPU- Fan
HDMI version
2.1
Cooling type
Active
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
6
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 IoT Enterprise-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0-1-10
PC health monitoring
CPU- Fan
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 3 3rd Gen- 3rd Generation AMD Ryzen 5- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
2133-2400-2666-2800-3000-3200-3466-3600-3866-4000-4133-4400-4600-4800-5000 MHz
Maximum internal memory
128 GB
Storage controllers
Number of HDDs supported
6
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
RAID levels
0-1-10
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.2
USB 2.0 ports quantity
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Digital audio optical out
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6 (802.11ax)
Wake-on-LAN ready
Yes
LAN controller
Intel I225-V
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.1
Features
Power source type
ATX
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 IoT Enterprise-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
PC health monitoring
CPU- Fan
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
1
PCI Express slots version
3.0-4.0
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256000 Mbit
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 IoT Enterprise-Windows 10 Pro-Windows 10 Pro x64-Windows 10 x64
Drivers included
Yes
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Manual
Yes
Drivers included
Yes
Cables included
SATA
ASUS ROG STRIX B550-F GAMING(WI-FI) Socket AM4 ATX
| Weight | 1.760000 lbs |
