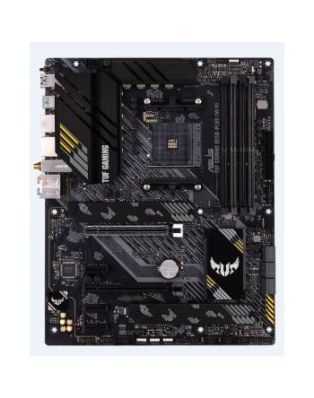

ASUS TUF GAMING B550-PLUS (WI-FI) AMD B550 Socket AM4 ATX
In Stock
|
Internal I/O
Number of M.2 (M) slots
2
Thunderbolt headers
1
Front panel connector
Yes
Audio connector
Yes
Supported storage drive interfaces
M.2-SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
6
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Number of displays supported
2
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Parallel processing technology support
2-Way CrossFireX
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Number of mounting holes
9
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0-1-5-10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Compatible processor series
3rd Generation AMD Ryzen 5- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-3000-3200-3333-3466-3600-3733-3866-4000-4133-4266-4400-4466-4600-4800 MHz
Maximum internal memory
128 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA
RAID levels
0-1-5-10
Graphics
Number of displays supported
2
Parallel processing technology support
2-Way CrossFireX
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.2
USB connector type
USB Type-A- USB Type-C
USB 2.0 ports quantity
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)
LAN controller
Realtek RTL8125B
Ethernet interface type
2.5 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Features
Number of mounting holes
9
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC S1200A
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
Software
Windows operating systems supported
Windows 10 x64
Drivers included
Yes
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
ASUS TUF GAMING B550-PLUS (WI-FI) AMD B550 Socket AM4 ATX
| Weight | 1.600000 lbs |
