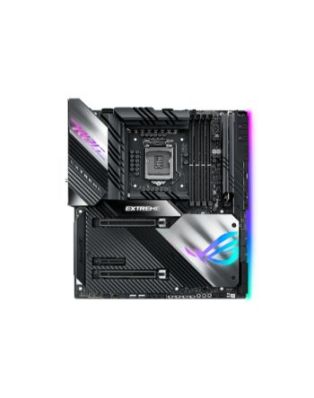

ASUS ROG Maximus XIII Extreme Intel Z590 LGA 1200 Extended ATX
In Stock
|
Internal I/O
Number of M.2 (M) slots
5
USB 3.2 Gen 2 (3.1 Gen 2) connectors
2
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Power fan connector
Yes
Peripheral (Molex) power connectors (4-pin)
6
Number of SATA III connectors
6
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590
Supported processor sockets
LGA 1200 (Socket H5)
Parallel processing technology support
2-Way SLI
Motherboard form factor
Extended ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590
Supported processor sockets
LGA 1200 (Socket H5)
Audio output channels
7.1 channels
Motherboard form factor
Extended ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel Pentium G
Supported processor sockets
LGA 1200 (Socket H5)
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
5333-2133-2400-2666-2800-2933-3200-3400-3466-3600-3733-3866-4000-4133-4266-4400-4500-4600-4700-4800-5000-5133 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
Number of storage drives supported
11
Graphics
Parallel processing technology support
2-Way SLI
Maximum resolution
3840 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
8
USB connector type
USB Type-A- USB Type-C
WiFi-AP antenna jack
1
Thunderbolt ports quantity
2
S/PDIF out port
Yes
Headphone outputs
5
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a-802.11b-802.11g-Wi-Fi 4 (802.11n)-Wi-Fi 5 (802.11ac)-Wi-Fi 6E (802.11ax)
Wake-on-LAN ready
Yes
LAN controller
Intel I225-V
Ethernet interface type
2.5 Gigabit Ethernet- 10 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX210
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel Z590
Supported processor sockets
LGA 1200 (Socket H5)
Audio output channels
7.1 channels
Motherboard form factor
Extended ATX
Component for
PC
Audio chip
Realtek ALC4082
Expansion slots
Number of M.2 (M) slots
5
PCI Express x4 slots
1
PCI Express x16 (Gen 4.x) slots
2
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
512 Mbit
Clear CMOS button
Yes
Video
Maximum resolution
3840 x 2160 pixels
Packaging data
Package width
380 mm
Package depth
320 mm
Package height
125 mm
Package weight
5.34 kg
Software
Windows operating systems supported
Windows 10 x64
Drivers included
Yes
Weight & dimensions
Package width
380 mm
Package depth
320 mm
Package height
125 mm
Package weight
5.34 kg
Width
305 mm
Depth
277 mm
Packaging content
Drivers included
Yes
Cables included
SATA-USB
Other features
Package width
380 mm
Package depth
320 mm
Package height
125 mm
Package weight
5.34 kg
ASUS ROG Maximus XIII Extreme Intel Z590 LGA 1200 Extended ATX
| Weight | 4.980000 lbs |
