Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10 x64-Windows 7 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
RAID levels
0-1-10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 3- 2nd Generation AMD Ryzen™ 3- AMD Ryzen 3 3rd Gen- AMD Ryzen 5- 2nd Generation AMD Ryzen™ 5- 3rd Generation AMD Ryzen 5- AMD Ryzen 7- 2nd Generation AMD Ryzen™ 7- 3rd Generation AMD Ryzen 7- 3rd Generation AMD Ryzen 9- AMD Ryzen Threadripper- AMD Ryzen™ Threadripper™: The Second Generation- AMD Ryzen Threadripper 3rd Gen- AMD Ryzen Threadripper Pro 3rd Gen
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-3000-3200-3400-3466-3533-3600-3733-3866-4000-4400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
M.2-SATA-SATA II-SATA III
RAID levels
0-1-10
Number of storage drives supported
7
Internal I/O
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA-SATA II-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
6
Number of COM connectors
1
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 2.0 ports quantity
2
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64-Windows 7 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B450
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887
Expansion slots
PCI Express x1 (Gen 2.x) slots
1
PCI Express x16 (Gen 2.x) slots
3
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
6.1
Software
Windows operating systems supported
Windows 10 x64-Windows 7 x64
Bundled software
Armoury Crate- Aura Creator- Aura Sync- AI Noise-Canceling Microphone- AI Suite 3- Performance And Power Saving Utility- TurboV EVO- EPU- Digi+ VRM- Fan Xpert 2+- EZ update- PC Cleaner- TUF GAMING- CPU-Z- AI Charger- ASUS Turbo LAN- DAEMON Tools- DTS Custom for GAMING Headsets- Norton Anti-virus software (Free Trial for 60 days)- WinRAR- UEFI BIOS- ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Bundled software
Armoury Crate- Aura Creator- Aura Sync- AI Noise-Canceling Microphone- AI Suite 3- Performance And Power Saving Utility- TurboV EVO- EPU- Digi+ VRM- Fan Xpert 2+- EZ update- PC Cleaner- TUF GAMING- CPU-Z- AI Charger- ASUS Turbo LAN- DAEMON Tools- DTS Custom for GAMING Headsets- Norton Anti-virus software (Free Trial for 60 days)- WinRAR- UEFI BIOS- ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode

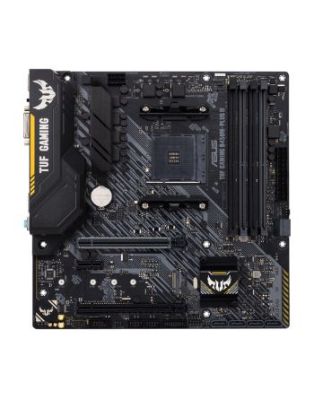

ASUS TUF Gaming B450M-Plus II AMD B450 Socket AM4 micro ATX
Weight | 1.060000 lbs |
