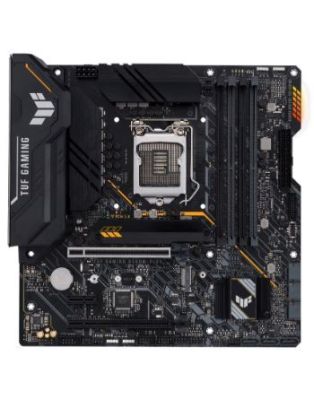

ASUS TUF GAMING B560M-PLUS Intel B560 LGA 1200 micro ATX
In Stock
|
Internal I/O
Number of M.2 (M) slots
2
Thunderbolt headers
1
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
Peripheral (Molex) power connectors (4-pin)
4
Number of SATA III connectors
6
Number of EATX power connectors
1
Number of COM connectors
1
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B560
HDMI version
2.0
Motherboard form factor
micro ATX
Component for
PC
Number of mounting holes
8
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B560
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel Core i5- Intel Core i7- Intel Core i9- Intel® Pentium®
Maximum number of SMP processors
1
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933-3200-3466-3600-3733-4000-4266-4400-4600-4800-5000 MHz
Maximum internal memory
128 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA
Number of storage drives supported
8
Graphics
Maximum resolution
4096 x 2304 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.2
USB connector type
USB Type-A- USB Type-C
USB 2.0 ports quantity
4
S/PDIF out port
Yes
Microphone in
Yes
HDMI version
2.0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Power source type
ATX
Number of mounting holes
8
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B560
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
Power
Power source type
ATX
Video
Maximum resolution
4096 x 2304 pixels
Software
Windows operating systems supported
Windows 10 x64
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
ASUS TUF GAMING B560M-PLUS Intel B560 LGA 1200 micro ATX
| Weight | 1.370000 lbs |
