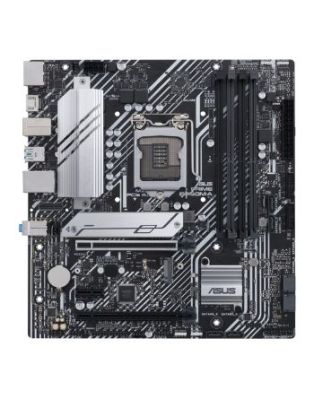

ASUS PRIME B560M-A LGA1200 micro ATX 90MB17A0-M0EAY0
In Stock
|
Internal I/O
Number of M.2 (M) slots
2
12V power connector
Yes
Supported storage drive interfaces
SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
S/PDIF out connector
Yes
Peripheral (Molex) power connectors (4-pin)
4
Number of SATA III connectors
6
Number of COM connectors
1
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Number of displays supported
2
Motherboard chipset family
Intel
Motherboard chipset
Intel B560
HDMI version
2.0
Motherboard form factor
micro ATX
Component for
PC
Number of mounting holes
6
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B560
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core i5- Intel Core i7- Intel Core i9
Maximum number of SMP processors
1
Processor socket
LGA 1200
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933-3200-3333-3466-3600-3733-4000-4266-4400-4600-4800-5000 MHz
Maximum internal memory
128 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA
Number of storage drives supported
8
Graphics
Number of displays supported
2
Maximum resolution
4096 x 2304 pixels
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB connector type
USB Type-A- USB Type-C
USB 2.0 ports quantity
4
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI version
2.0
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I219-V
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Number of mounting holes
6
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B560
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Power
Power source type
ATX
Video
Maximum resolution
4096 x 2304 pixels
Software
Windows operating systems supported
Windows 10 x64
Weight & dimensions
Width
244 mm
Depth
234 mm
ASUS PRIME B560M-A LGA1200 micro ATX 90MB17A0-M0EAY0
| Weight | 1.030000 lbs |
