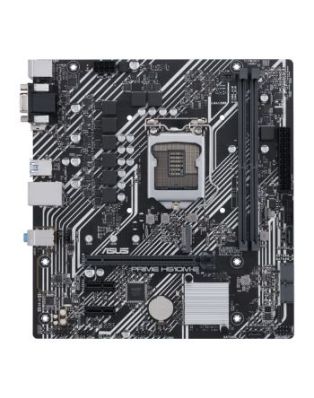

ASUS PRIME H510M-E Intel H510 LGA 1200 micro ATX
In Stock
|
Internal I/O
Number of M.2 (M) slots
1
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H510
Supported processor sockets
LGA 1200 (Socket H5)
Parallel processing technology support
Not supported
HDMI version
2.0
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H510
Supported processor sockets
LGA 1200 (Socket H5)
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel Core i9- Intel Pentium G
Supported processor sockets
LGA 1200 (Socket H5)
Processor socket
LGA 1200
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933-3200 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2-SATA III
Number of storage drives supported
5
Graphics
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2304 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
DisplayPort version
1.4
USB connector type
USB Type-A
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
Microphone in
Yes
Headphone outputs
3
HDMI version
2.0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Wake-on-LAN ready
Yes
LAN controller
Intel® I219-V
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H510
Supported processor sockets
LGA 1200 (Socket H5)
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC887 / Realtek ALC897
Expansion slots
Number of M.2 (M) slots
1
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
Video
Maximum resolution
4096 x 2304 pixels
Software
Windows operating systems supported
Windows 10 x64
Drivers included
Yes
Weight & dimensions
Width
226 mm
Depth
211 mm
Packaging content
Drivers included
Yes
Cables included
SATA
ASUS PRIME H510M-E Intel H510 LGA 1200 micro ATX
| Weight | 0.840000 lbs |
