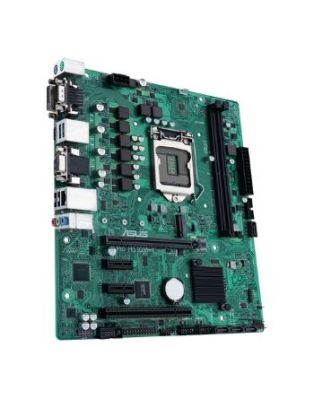

ASUS PRO H510M-C/CSM Intel H510 LGA 1200 micro ATX
In Stock
|
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel H510
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel H510
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel Pentium G
Processor socket
LGA 1200
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133-2400-2666-2800-2933 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
M.2-SATA III
Graphics
Discrete graphics support
Yes
Internal I/O
Front panel connector
Yes
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2-SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
2
Front panel audio connector
Yes
CPU fan connector
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
DisplayPort version
1.4
USB 2.0 ports quantity
2
PS/2 ports quantity
2
HDMI ports quantity
1
DVI-D ports quantity
1
DisplayPorts quantity
1
COM ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I219-LM
Features
Windows operating systems supported
Windows 10
Motherboard chipset family
Intel
Motherboard chipset
Intel H510
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC897
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Video
Discrete graphics support
Yes
Software
Windows operating systems supported
Windows 10
Weight & dimensions
Width
244 mm
Depth
216 mm
ASUS PRO H510M-C/CSM Intel H510 LGA 1200 micro ATX
| Weight | 0.880000 lbs |
