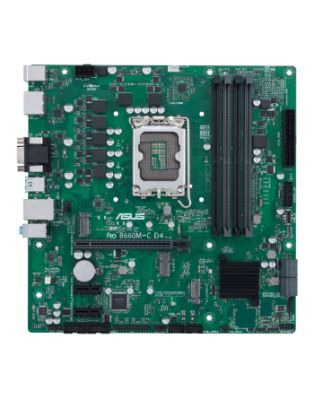

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
In Stock
|
Internal I/O
Number of M.2 (M) slots
2
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Number of displays supported
3
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
RAID levels
0- 1- 5- 10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA
RAID levels
0- 1- 5- 10
Graphics
Number of displays supported
3
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
DisplayPort version
1.4
USB 2.0 ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
2
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Features
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC897
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS memory size
128 Mbit
Weight & dimensions
Height
51 mm
Weight
634 g
Width
244 mm
Depth
244 mm
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
| Weight | 1.000000 lbs |
