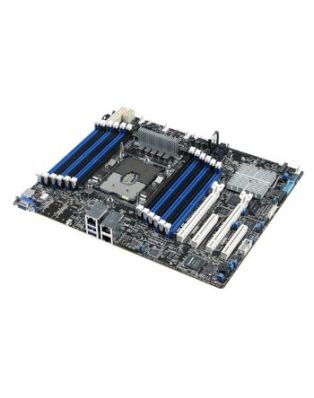

ASUS Z11PA-U12 server/workstation motherboard Intel C621 LGA 3647 (Socket P) ATX
In Stock
|
Technical details
Motherboard chipset
Intel® C621
Serial port headers
1
Parallel processing technology support
Not supported
Number of processors supported
1
Number of DIMM slots
12
Motherboard form factor
ATX
Component for
Server
Performance
Motherboard chipset
Intel® C621
RAID levels
0-1-5-10
Motherboard form factor
ATX
Component for
Server
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Xeon®
Processor socket
LGA 3647 (Socket P)
Supported QPI
10.4 GT/s
Memory
Supported memory types
DDR4-SDRAM
Memory channels
Hexa-channel
Supported memory clock speeds
2400-2666 MHz
Supported RDIMM clock speeds
2400-2666 MHz
Supported RDIMM module capacity
4GB- 8GB- 16GB- 32GB
Maximum internal memory
1536 GB
Maximum RDIMM memory
384 GB
Maximum UDIMM memory
768 GB
Storage controllers
Supported storage drive interfaces
Serial Attached SCSI (SAS)
RAID levels
0-1-5-10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Discrete graphics support
Yes
On-board graphics adapter model
Aspeed AST2500
On-board graphics adapter memory
64 MB
Internal I/O
Supported storage drive interfaces
Serial Attached SCSI (SAS)
TPM connector
Yes
Serial port headers
1
Power fan connector
Yes
Number of SATA III connectors
13
EPS power connector (8-pin)
Yes
ATX Power connector (24-pin)
Yes
Integrated SAS ports
2
Rear panel I/O ports
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
3
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I210-AT
Features
Motherboard chipset
Intel® C621
Motherboard form factor
ATX
Component for
Server
Expansion slots
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
20 - 90%
Video
Discrete graphics support
Yes
Packaging data
Package weight
1.62 kg
Weight & dimensions
Package weight
1.62 kg
Weight
970 g
Width
305 mm
Depth
244 mm
Other features
Package weight
1.62 kg
PCI Express x8 (Gen 3.x) slots
2
Supported RDIMM clock speeds
2400-2666 MHz
Supported RDIMM module capacity
4GB- 8GB- 16GB- 32GB
Maximum UDIMM memory
768 GB
Weight
970 g
Number of processors supported
1
Number of DIMM slots
12
Supported DIMM module capacities
4GB- 8GB- 16GB- 32GB- 64GB
Supported LRDIMM module capacity
32GB- 64GB
Supported LRDIMM clock speeds
2400-2666 MHz
ASUS Z11PA-U12 server/workstation motherboard Intel C621 LGA 3647 (Socket P) ATX
| Weight | 1.000000 lbs |
