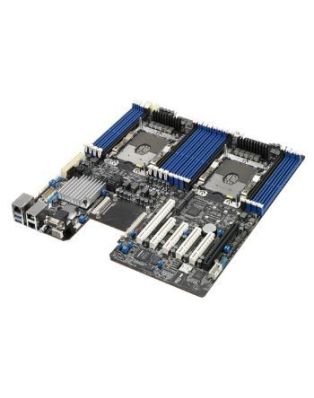

ASUS Z11PR-D16 server/workstation motherboard Intel C621 LGA 3647 (Socket P) SSI EEB
In Stock
|
Technical details
Motherboard chipset
Intel® C621
Serial port headers
1
Parallel processing technology support
Not supported
Number of processors supported
2
Number of DIMM slots
16
Motherboard form factor
SSI EEB
Component for
Server
Performance
Motherboard chipset
Intel® C621
RAID levels
0-1-5-10
Motherboard form factor
SSI EEB
Component for
Server
Processor
Processor manufacturer
Intel
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Memory
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2400-2666 MHz
Supported RDIMM clock speeds
2400-2666 MHz
Supported RDIMM module capacity
4GB- 8GB- 16GB- 32GB
Maximum internal memory
512 GB
Maximum RDIMM memory
512 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0-1-5-10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
On-board graphics adapter model
Aspeed AST2500
On-board graphics adapter memory
64 MB
Internal I/O
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
TPM connector
Yes
Serial port headers
1
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
3
Network
Ethernet LAN
Yes
LAN controller
Intel® I350-AM2
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel® C621
Motherboard form factor
SSI EEB
Component for
Server
Expansion slots
PCI Express x8 (Gen 3.x) slots
4
PCI Express x16 (Gen 3.x) slots
2
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
20 - 90%
Packaging data
Package weight
2.42 kg
Weight & dimensions
Package weight
2.42 kg
Weight
1.4 kg
Width
305 mm
Depth
330 mm
Other features
Package weight
2.42 kg
PCI Express x8 (Gen 3.x) slots
4
Supported RDIMM clock speeds
2400-2666 MHz
Supported RDIMM module capacity
4GB- 8GB- 16GB- 32GB
Weight
1.4 kg
Number of processors supported
2
Number of DIMM slots
16
Supported DIMM module capacities
4GB- 8GB- 16GB- 32GB- 64GB
Supported LRDIMM module capacity
32GB- 64GB
Supported LRDIMM clock speeds
2400-2666 MHz
Maximum LRDIMM memory
1024 GB
ASUS Z11PR-D16 server/workstation motherboard Intel C621 LGA 3647 (Socket P) SSI EEB
