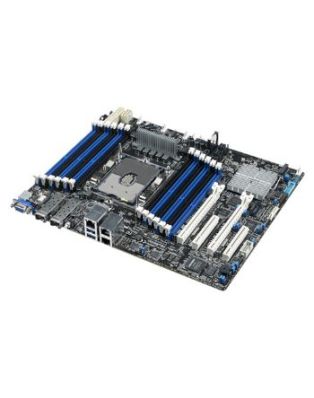

ASUS Z11PA-U12/10G-2S LGA 3647 (Socket P) ATX
In Stock
|
Internal I/O
Number of M.2 (M) slots
1
Ethernet LAN connectors
2
Supported storage drive interfaces
SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Power fan connector
Yes
Peripheral (Molex) power connectors (4-pin)
6
Number of SATA III connectors
13
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
PC health monitoring
CPU- Fan
On-board graphics adapter
Yes
Cooling type
Active
Motherboard form factor
ATX
Component for
PC
Performance
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
PC health monitoring
CPU- Fan
Cooling type
Active
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Xeon Phi™
Processor socket
LGA 3647 (Socket P)
Memory
Number of memory slots
12
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Single-channel
Supported memory clock speeds
2400-2666-2933 MHz
Supported memory module capacities
4GB- 8GB- 16GB- 32GB- 64GB- 128GB
Maximum internal memory
1536 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
Graphics
Maximum graphics adapter memory
64 MB
On-board graphics adapter
Yes
Graphics adapter family
ASPEED
Graphics adapter
AST2500
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
3
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
10 Gigabit Ethernet
Features
Power source type
ATX
Motherboard chipset family
Intel
PC health monitoring
CPU- Fan
Cooling type
Active
Motherboard form factor
ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 dual x8/x8 mode
Yes
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
1
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Power
Power source type
ATX
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
20 - 90%
Video
Maximum graphics adapter memory
64 MB
Graphics adapter family
ASPEED
Graphics adapter
AST2500
Weight & dimensions
Width
305 mm
Depth
244 mm
Other features
PCI Express x16 dual x8/x8 mode
Yes
Ethernet LAN connectors
2
PCI Express x8 (Gen 3.x) slots
2
ASUS Z11PA-U12/10G-2S LGA 3647 (Socket P) ATX
| Weight | 1.000000 lbs |
