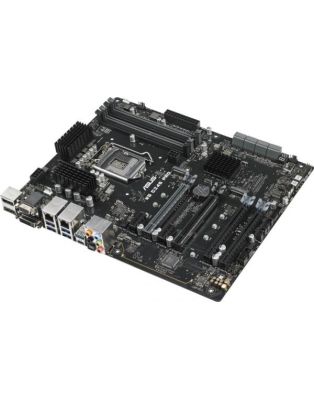

ASUS WS C246 PRO LGA 1151 (Socket H4) ATX Intel C246
In Stock
|
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel C246
Back-to-BIOS button
Yes
Motherboard form factor
ATX
Component for
PC
Performance
Motherboard chipset family
Intel
Motherboard chipset
Intel C246
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core™ i3- Intel Core i5- Intel Core i7- Intel® Pentium®- Intel® Xeon®
Processor socket
LGA 1151 (Socket H4)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
2133-2400-2666 MHz
Maximum internal memory
64 GB
Internal I/O
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
8
Number of COM connectors
2
ATX Power connector (24-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
VGA (D-Sub) ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
1
Dual Link DVI
No
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wake-on-LAN ready
Yes
LAN controller
Intel® I210-AT- Intel I219LM
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset family
Intel
Motherboard chipset
Intel C246
Motherboard form factor
ATX
Component for
PC
Expansion slots
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
2
PCI Express x1 (Gen 2.x) slots
5
PCI Express x16 (Gen 3.x) slots
3
BIOS
Back-to-BIOS button
Yes
Video
Dual Link DVI
No
Software
Drivers included
Yes
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Manual
Yes
Quick installation guide
Yes
Drivers included
Yes
Cables included
SATA
Other features
Quick installation guide
Yes
Dual Link DVI
No
Back-to-BIOS button
Yes
ASUS WS C246 PRO LGA 1151 (Socket H4) ATX Intel C246
| Weight | 1.410000 lbs |
