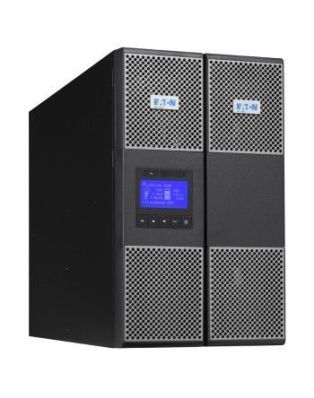

Eaton 9PX11KIRTNBP uninterruptible power supply (UPS) Double-conversion (Online) 11000 VA 10000 W 5 AC outlet(s)
In Stock
|
Specifications
Power
Output power
10000 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.0095
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
0.02
Input current Total Harmonic Distortion (THD)
0.05
Crest factor
0.12569444444444
Output power capacity
11000 VA
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
LED indicators
Yes
Noise level
50 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
Output power
10000 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.0095
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
0.02
Noise level
50 dB
Input current Total Harmonic Distortion (THD)
0.05
Crest factor
0.12569444444444
Output power capacity
11000 VA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
5 AC outlet(s)
AC outlet types
C19 couplerTerminal
Power plug
Terminal
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
13 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
6U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1 UL 1778
Energy Star certified
Yes
Display
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 ‚°C
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Weight
86 kg
Width
440 mm
Height
260 mm
Depth
700 mm
Packaging data
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Management card included
Yes
Certificates
Safety
IEC/EN 62040-1 UL 1778
Energy Star certified
Yes
Other features
Interface
USB RS232
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Eaton 9PX11KIRTNBP uninterruptible power supply (UPS) Double-conversion (Online) 11000 VA 10000 W 5 AC outlet(s)
| Length | 70.00 in |
| Width | 44.00 in |
| Height | 26.00 in |
| Weight | 86.000000 lbs |
