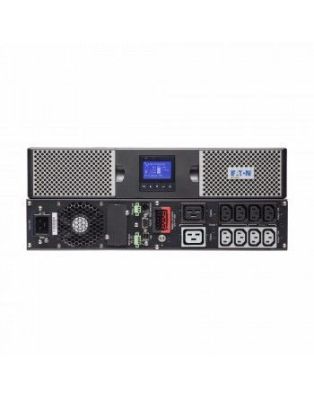

Eaton 9PX2200IRTN uninterruptible power supply (UPS) Double-conversion (Online) 2200 VA 2200 W 10 AC outlet(s)
In Stock
|
Specifications
Power
Output power
2200 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.935
Power factor
1
Output power capacity
2200 VA
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
LED indicators
Yes
Noise level
40 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
1
Output power
2200 W
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.935
Power factor
1
Noise level
40 dB
Output power capacity
2200 VA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
10 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
10 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
2U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1 UL 1778 CSA 22.2
Energy Star certified
Yes
Display
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 ‚°C
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Weight
25 kg
Width
440 mm
Height
86.5 mm
Depth
605 mm
Packaging data
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Management card included
Yes
Certificates
Safety
IEC/EN 62040-1 UL 1778 CSA 22.2
Energy Star certified
Yes
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Eaton 9PX2200IRTN uninterruptible power supply (UPS) Double-conversion (Online) 2200 VA 2200 W 10 AC outlet(s)
| Length | 60.50 in |
| Width | 44.00 in |
| Height | 8.65 in |
| Weight | 25.000000 lbs |
