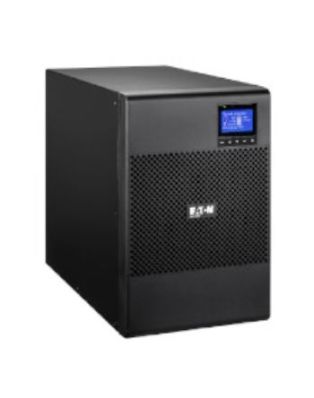

Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 3000 VA 2700 W 9 AC outlet(s)
In Stock
|
Specifications
Power
Output power
2700 W
Input operation voltage (min)
200 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Power factor
0.9
Output power capacity
3000 VA
ECO mode
No
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of output phases
1
Number of input phases
1
Noise level
45 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of output phases
1
Number of input phases
1
Output power
2700 W
Input operation voltage (min)
200 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Power factor
0.9
Noise level
45 dB
Output power capacity
3000 VA
ECO mode
No
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
9 AC outlet(s)
AC outlet types
C13 couplerC19 coupler
Power plug
C20 coupler
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
15.5 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Form factor
Tower
Product colour
Black
Safety
IEC/EN 62040-1 UL 1778 CSA 22.2
Display
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 ‚°C
Technical details
Output frequency
50/60 Hz
Weight & dimensions
Weight
33.4 kg
Width
214 mm
Height
346 mm
Depth
412 mm
Packaging data
Bundled software
Intelligent Power Software suite
Management card included
No
Other features
Input connection type
IEC C20
Nominal output voltage
230 V
Nominal input voltage
230 V
Packaging content
Bundled software
Intelligent Power Software suite
Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 3000 VA 2700 W 9 AC outlet(s)
| Length | 41.20 in |
| Width | 21.40 in |
| Height | 34.60 in |
| Weight | 33.400000 lbs |
