Performance
Antenna gain level (max)
19.1 dBi
Frequency band
5.15 - 5.85 GHz
Vertical beam width (5 GHz)
2°
Vertical beam width
123°
Horizontal beam width (5 GHz)
4°
Horizontal beam width
123°
Features
Antenna gain level (max)
19.1 dBi
Frequency band
5.15 - 5.85 GHz
Antenna type
Sector antenna
Voltage Standing Wave Ratio (VSWR)
1.5:1
Vertical beam width (5 GHz)
2°
Vertical beam width
123°
Purpose
Outdoor
Polarization
Dual polarization
Mounting
Wall
Horizontal beam width (5 GHz)
4°
Horizontal beam width
123°
Product colour
White
Certification
EN 302 326 DN2
Technical details
Antenna gain level (max)
19.1 dBi
Frequency band
5.15 - 5.85 GHz
Antenna type
Sector antenna
Voltage Standing Wave Ratio (VSWR)
1.5:1
Vertical beam width (5 GHz)
2°
Vertical beam width
123°
Purpose
Outdoor
Polarization
Dual polarization
Mounting
Wall
Horizontal beam width (5 GHz)
4°
Horizontal beam width
123°
Harmonized System (HS) code
85177100
Colour
Product colour
White
Certificates
Certification
EN 302 326 DN2
Weight & dimensions
Weight
5.9 kg
Width
700 mm
Depth
135 mm
Height
73 mm

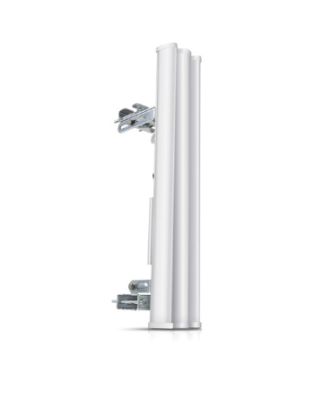

Ubiquiti Networks AM-5G19-120 AirMAX 5 GHz 2x2 MIMO Sector Antenna
Length | 13.50 in |
Width | 70.00 in |
Height | 7.30 in |
Weight | 5.900000 lbs |
