APC AP8881 power distribution unit (PDU) 0U Black 42 AC outlet(s)
In Stock
|
Specifications
Design
PDU types
Metered
Mounting
Vertical
Product colour
Black
Certification
CSA C22.2 No. 60950IEC 60950UL 60950-1VDE
RoHS REACH
Rack capacity
0U
Ports & interfaces
AC outlets quantity
42 AC outlet(s)
AC outlet types
C13 couplerC19 coupler

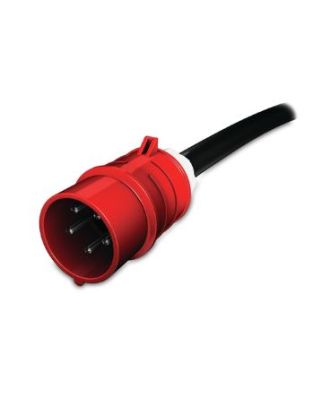

Power plug
IEC309
Output connections
36x IEC 320 C13
6x IEC 320 C19
Input connection type
IEC 309 16A 3P+N+PE IEC 309 20A 3P+N+E
Features
Cable length
1.83 m
Certification
CSA C22.2 No. 60950IEC 60950UL 60950-1VDE
RoHS REACH
Management features
Monitoring
CurrentPowerVoltage
Ergonomics
Cable length
1.83 m
Power
Maximum power
11040 W
Nominal input voltage
400 V
Nominal output voltage
230 V
Maximum current
16 A
Maximum total current draw per phase
16 A
Maximum input current per phase
16 A
Load capacity
11040 VA
AC input frequency
50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)
56 x 44 x 1791 mm
Weight
6.38 kg
Operational conditions
Operating temperature (T-T)
5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
5 - 95%
APC AP8881 power distribution unit (PDU) 0U Black 42 AC outlet(s)
| Weight | 8.880000 lbs |
