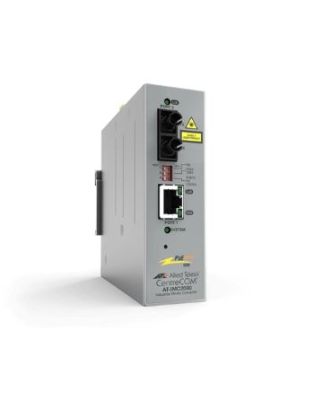

Allied Telesis AT-IMC2000TP/SC-980 network media converter 1000 Mbit/s 850 nm Multi-mode Grey
In Stock
|
Network
Fiber optic connector
SC
Jumbo frames support
Yes
Store-and-forward
Yes
Packet forwarding rate (100 Mbps)
148880 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (1 Gbps)
1488000 pps
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Converter output interface
1000Base-SX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
1000 Mbit/s
Technical details
International Protection (IP) code
IP30
Wavelength
850 nm
Maximum transfer distance
550 m
Fiber mode structure
Multi-mode
Tx power (min)
-9.5 dBmW
Tx power (max)
-4 dBmW
Rx power (min)
-17 dBmW
Rx power (max)
-3 dBmW
Internal
No
Sustainability certificates
RoHS
Performance
Jumbo frames support
Yes
Store-and-forward
Yes
Wavelength
850 nm
Maximum transfer distance
550 m
Fiber mode structure
Multi-mode
Tx power (min)
-9.5 dBmW
Tx power (max)
-4 dBmW
Rx power (min)
-17 dBmW
Rx power (max)
-3 dBmW
Ports & interfaces
Power over Ethernet plus (PoE+) ports quantity
1
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC
Indication
LED indicators
Yes
Design
DIN rail mounting
Yes
International Protection (IP) code
IP30
LED indicators
Yes
Product colour
Grey
Internal
No
Power
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
70 W
Colour
Product colour
Grey
Weight & dimensions
Width
111 mm
Depth
96 mm
Weight
748 g
Height
35 mm
Allied Telesis AT-IMC2000TP/SC-980 network media converter 1000 Mbit/s 850 nm Multi-mode Grey
| Weight | 0.570000 lbs |
