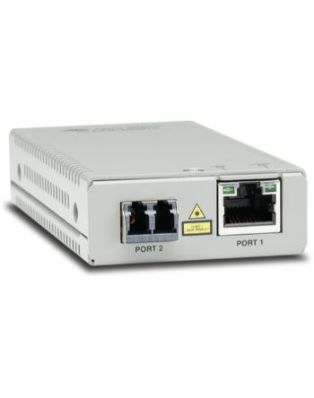

Allied Telesis AT-MMC2000/LC-960 network media converter 1000 Mbit/s 1310 nm Multi-mode
In Stock
|
Network
Fiber optic connector
LC
Jumbo frames support
Yes
VLAN support
Yes
Fiber ethernet cabling technology
1000BASE‑SX
Networking standards
IEEE 802.1Q
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Duplex system
Full
Converter output interface
1000Base-SX
Maximum data transfer rate
1000 Mbit/s
Technical details
Wavelength
1310 nm
Maximum transfer distance
2000 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125-62.5/125 µm
Tx power (min)
-20 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Internal
No
Performance
Jumbo frames support
Yes
Wavelength
1310 nm
Maximum transfer distance
2000 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125-62.5/125 µm
Tx power (min)
-20 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
2
Fiber optic connector
LC
DC-in jack
Yes
Indication
LED indicators
Activity- Link
Design
LED indicators
Activity- Link
Product colour
Grey
Internal
No
Power
Power over Ethernet (PoE)
Yes
Input voltage
12 V
Input current
0.14 A
Power consumption (typical)
1.7 W
Colour
Product colour
Grey
Weight & dimensions
Width
54.9 mm
Depth
101.6 mm
Weight
170 g
Height
21.8 mm
Allied Telesis AT-MMC2000/LC-960 network media converter 1000 Mbit/s 1310 nm Multi-mode
| Weight | 0.500000 lbs |
