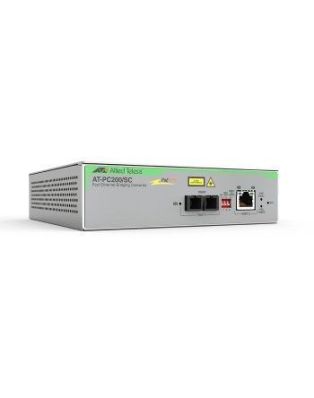

Allied Telesis AT-PC200/SC-60 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
In Stock
|
Network
Fiber optic connector
SC
Jumbo frames support
Yes
Data transfer rate
100 Mbit/s
Packet forwarding rate (100 Mbps)
148880 pps
Packet forwarding rate (10 Mbps)
14880 pps
VLAN support
Yes
Converter input interface
10Base-T-100Base-T
Networking standards
IEEE 802.1Q-IEEE 802.3at
Converter output interface
100Base-FX
Auto MDI/MDI-X
Yes
Maximum data transfer rate
100 Mbit/s
Technical details
Wavelength
1310 nm
Maximum transfer distance
2000 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125-62.5/125 µm
Tx power (min)
-19 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Rx power (max)
-3 dBmW
Internal
No
Data transfer rate
100 Mbit/s
Performance
Jumbo frames support
Yes
Wavelength
1310 nm
Maximum transfer distance
2000 m
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125-62.5/125 µm
Tx power (min)
-19 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Rx power (max)
-3 dBmW
Ports & interfaces
Connectivity technology
Wired
Fiber optic connector
SC
Indication
LED indicators
Yes
Design
LED indicators
Yes
Product colour
Grey
Internal
No
Power
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
30 W
Input voltage
100 - 240 V
Power consumption (typical)
35 W
AC input frequency
50 - 60 Hz
Colour
Product colour
Grey
Weight & dimensions
Width
155 mm
Depth
149 mm
Weight
748 g
Height
40 mm
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Allied Telesis AT-PC200/SC-60 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
| Weight | 1.000000 lbs |
