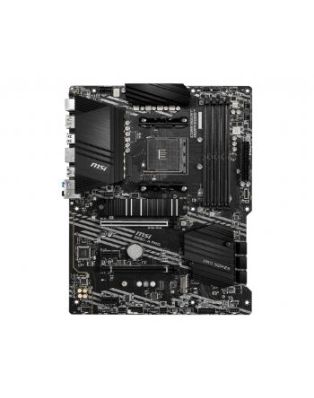

MSI B550-A PRO motherboard AMD B550 Socket AM4 ATX
In Stock
|
Internal I/O
Number of M.2 (M) slots
2
12V power connector
Yes
Supported storage drive interfaces
SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
6
Number of chassis fan connectors
6
Front panel audio connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Parallel processing technology support
2-Way CrossFireX
Motherboard form factor
ATX
Component for
PC
Number of mounting holes
9
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0- 1- 10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Maximum number of SMP processors
1
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Maximum internal memory
128 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
SATA III
RAID levels
0- 1- 10
Graphics
Maximum graphics card memory
16000 MB
Parallel processing technology support
2-Way CrossFireX
Maximum resolution
4096 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
4
PS/2 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Realtek 8111H
Ethernet interface type
Gigabit Ethernet
Features
Number of mounting holes
9
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC892
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
Clear CMOS jumper
Yes
Video
Maximum graphics card memory
16000 MB
Maximum resolution
4096 x 2160 pixels
Packaging data
Package weight
1.63 kg
Software
Drivers included
Yes
Logistics data
Country of origin
China
Weight & dimensions
Height
65 mm
Package weight
1.63 kg
Weight
1 kg
Width
305 mm
Depth
244 mm
MSI B550-A PRO motherboard AMD B550 Socket AM4 ATX
| Length | 24.40 in |
| Width | 30.50 in |
| Height | 6.50 in |
| Weight | 1.000000 lbs |
