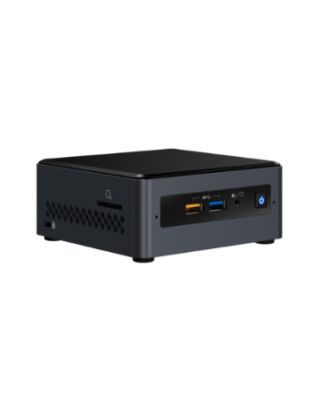

Intel NUC BOXNUC7CJYH PC/workstation barebone UCFF Black BGA 1090 J4005 2 GHz
In Stock
|
Motherboard
Motherboard form factor
UCFF
Processor socket
BGA 1090
Number of processors supported
1
Processor
Thermal Design Power (TDP)
10 W
L3 cache
4 MB
Built-in processor
Yes
Processor model
J4005
Processor boost frequency
2.7 GHz
Processor threads
2
Processor frequency
2 GHz
Processor socket
BGA 1090
Processor lithography
14 nm
Processor cores
2
Processor family
Intel® Celeron®
Number of processors supported
1
Processor manufacturer
Intel
Processor codename
Gemini Lake
CPU configuration (max)
1
Memory bandwidth supported by processor (max)
38.4 GB/s
Processor cache
4 MB
Memory
Memory voltage
1.2 V
Memory slots type
SO-DIMM
Number of memory slots
2
Memory channels
Dual-channel
Memory bandwidth (max)
38.4 GB/s
ECC
No
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2400 MHz
Maximum internal memory
8 GB
Non-ECC
Yes
Removable memory card slot
SDXC with UHS-I support
Number of DIMM slots
2
Video
On-board graphics adapter
No
Graphics adapter family
Intel
Storage
Supported storage drive types
HDD & SSD
Storage drive sizes supported
2.5"
Storage drive interface
Serial ATA III
Number of storage drives supported
1
Compatible memory cards
SDXC
Card reader integrated
Yes
Graphics
Number of displays supported
2
On-board graphics adapter
No
Graphics adapter family
Intel
On-board graphics adapter model
Intel® UHD Graphics 600
Audio
Intel® High Definition Audio (Intel® HD Audio)
Yes
Audio output channels
7.1 channels
Network
Wi-Fi standards
802.11a-Wi-Fi 5 (802.11ac)-802.11b-802.11g-Wi-Fi 4 (802.11n)
Bluetooth version
5.0
Bluetooth
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN controller model
Intel Dual Band Wireless-AC 9462
Ports & interfaces
Number of SATA III connectors
1
Infrared data port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI version
2.0a
S/PDIF out port
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
6
Graphics output
2x HDMI 2.0a
Expansion slots
PCI Express slots version
2.0
PCI Express configurations
1x2-1x2+2x1-1x4-2x1-4x1
Design
Motherboard form factor
UCFF
Product type
Mini PC barebone
ARK ID
126135
On/off switch
Yes
LED indicators
Yes
Product colour
Black
Chassis type
UCFF
Product series
Intel® NUC Kit with Intel® Celeron® Processors
Product codename
JUNE CANYON
Status
Launched
Performance
Motherboard form factor
UCFF
Number of displays supported
2
Trusted Platform Module (TPM)
No
Processor socket
BGA 1090
Operating system installed
No
Number of processors supported
1
Compatible operating systems
Windows 10- 64-bit*
Audio output channels
7.1 channels
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Consumer infrared Rx sensor
Yes
Supported RAID configuration
N/A
Software
Operating system installed
No
Compatible operating systems
Windows 10- 64-bit*
Processor special features
Intel® Smart Response Technology
No
Intel® Secure Key
Yes
Intel® OS Guard
Yes
Thermal Monitoring Technologies
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® Turbo Boost Technology
No
Intel® Quick Sync Video Technology
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel® vPro™ Platform Eligibility
No
Colour
Product colour
Black
Power
DC input voltage
12 - 19 V
AC adapter output voltage
12-19 V
Power supply type
External AC adapter
Technical details
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Embedded options available
No
Trusted Platform Module (TPM)
No
Processor cores
2
Chassis type
UCFF
ARK ID
126135
Internal I/O
Number of SATA connectors
1
Indication
LED indicators
Yes
Management features
On/off switch
Yes
Features
Number of displays supported
2
Weight & dimensions
Width
115 mm
Depth
111 mm
Height
51 mm
Packaging content
Processor included
Intel® Celeron® J4005 Processor (4M Cache- up to 2.70 GHz)
Other features
DC input voltage
12 - 19 V
Embedded options available
No
Number of SATA connectors
1
HDD size
2.5"
Chassis type
UCFF
Processor ARK ID
128992
Additional headers
CEC- 2x USB2.0- AUX_PWR- FRONT_PANEL
Launch date
Q1'18
Intel NUC BOXNUC7CJYH PC/workstation barebone UCFF Black BGA 1090 J4005 2 GHz
| Weight | 1.000000 lbs |
