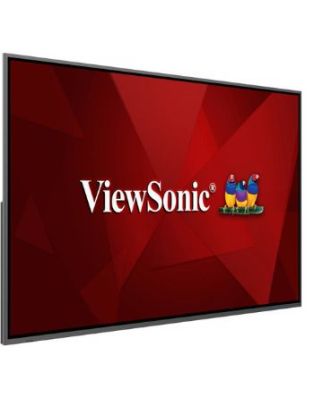

Viewsonic CDE8620 signage display Digital signage flat panel 2.18 m (86") IPS 4K Ultra HD Black
In Stock
|
| Display | |
|---|---|
| Display number of colours | 1.07 billion colours |
| LED backlighting type | Direct-LED |
| Touchscreen | No |
| Active display area (W x H) | 1895.04 x 1065.96 mm |
| Display technology | IPS |
| Display diagonal | 2.18 m (86") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle- horizontal | 178° |
| Viewing angle- vertical | 178° |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Display diagonal (metric) | 218 cm |
| Panel life | 30000 h |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Surface hardness | 2H |
| Haze rate | 28% |
| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi | No |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| OPS module slot | Yes |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| Certification | cULus- FCC- Energy Star- EPEAT-MX-CoC- Mexico Energy- CE- CB- RoHS- ErP- REACH- WEEE- Custom Union- UkrSEPRO- RCM- MEPS |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Performance | |
| Purpose | Universal |
| Wi-Fi | No |
| Panel life | 30000 h |
| Power | |
| Power consumption (typical) | 365 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Weight & dimensions | |
| Width | 1931 mm |
| Depth | 82 mm |
| Height | 1109 mm |
| Weight | 50.4 kg |
| Packaging data | |
| Package width | 2118 mm |
| Package depth | 280 mm |
| Package height | 1271 mm |
| Package weight | 69.8 kg |
| Batteries included | Yes |
| Handheld remote control | Yes |
| Cables included | AC- HDMI |
| Packaging content | |
| Batteries included | Yes |
| Handheld remote control | Yes |
| Cables included | AC- HDMI |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | cULus- FCC- Energy Star- EPEAT-MX-CoC- Mexico Energy- CE- CB- RoHS- ErP- REACH- WEEE- Custom Union- UkrSEPRO- RCM- MEPS |
| Technical details | |
| VESA mounting | Yes |
| LED backlighting type | Direct-LED |
| Sustainability certificates | CE- ENERGY STAR- ErP- REACH- RoHS |
| Other features | |
| Wi-Fi | No |
| Display technology | IPS |
| OPS module slot | Yes |
Viewsonic CDE8620 signage display Digital signage flat panel 2.18 m (86") IPS 4K Ultra HD Black
| Weight | 1.000000 lbs |
