SPECIFICATIONS
Product Description

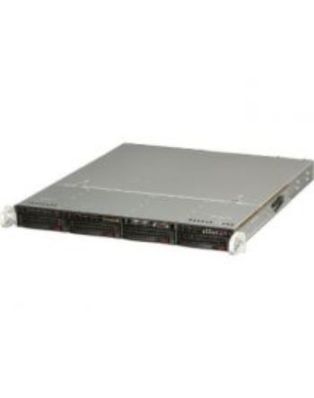

Supermicro SC813M TQ-R400CB - rack-mountable
Product Type
System cabinet
Form Factor
Rack-mountable - 1U
Color
Black
Built-in Devices
LED panel
I/O Connectors
1 x USB ¦ 1 x serial
Supported Motherboards
ATX microATX
Server Storage Bays
SATA/SAS - hot-swap
Power Device
Power supply 400 Watt
Power Redundancy
Yes
Voltage Required
AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH)
17.2 in x 19.8 in x 1.7 in
General
Form Factor
Rack-mountable - 1U
Max Mainboard Size
ATX
Supported Motherboards
ATX microATX
Front Accessible Bays Qty
1
Hot-Swap Bays Qty
4
Server Swappable Drive Interface
SATA/SAS
Built-in Devices
LED panel
Color
Black
Cooling System
Internal: 40 mm fan x 4
Expansion / Connectivity
Expansion Slots
1 x full-height
Interfaces
1 x USB ¦ 1 x serial
Power
Power Device
Power supply
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
1
Max Supported Qty
1
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Provided
400 Watt
Dimensions & Weight
Width
17.2 in
Depth
19.8 in
Height
1.7 in
Environmental Parameters
Min Operating Temperature
50 °F
Max Operating Temperature
95 °F
Humidity Range Operating
8 - 90%
Supermicro SuperChassis 813MTQ-R400CB (Black)
Weight | 1.000000 lbs |
