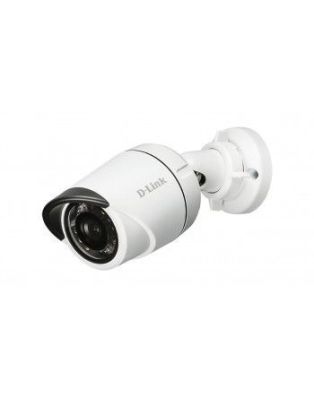

D-Link DCS-4701E security camera IP security camera Indoor & outdoor Bullet 1280 x 720 pixels
In Stock
|
Performance
Type
IP security camera
Connectivity technology
Wired
Placement supported
Indoor & outdoor
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Certification
CE (Class A) CE LVD FCC (Class A) C-Tick
Design
Form factor
Bullet
Product colour
White
Protection features
Vandal proof
International Protection (IP) code
IP66
Camera
Viewing angle- diagonal
108°
Viewing angle- horizontal
96°
Viewing angle- vertical
54°
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 3 mm (1 / 3")
Lens system
Digital zoom
10x
Focus adjustment
1.8
Fixed focal length
2.8 mm
Night vision
Night vision
Yes
Night vision distance
30 m
LED type
IR
Video
Full HD
No
Maximum resolution
1280 x 720 pixels
Video formats supported
H.264-M-JPEG
Supported graphics resolutions
960 x 720-1280 x 720 (HD 720)
Supported video modes
720p
Frame rate
30 fps
Total megapixels
1.3 MP
Network
4G
No
3G
No
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Compliance industry standards
PoE IEEE 802.3af
Storage
Card reader integrated
No
Built-in HDD
No
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Interface
RJ-45
Connectivity technology
Wired
Security
Video motion detection
Yes
Power
Power source type
PoE
Power over Ethernet (PoE)
Yes
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
DC-in jack
Yes
DC output voltage
+12V
DC output current
1.5 A
Certificates
Certification
CE (Class A) CE LVD FCC (Class A) C-Tick
Operational conditions
Operating temperature (T-T)
-30 - 50 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Length
16.4 cm
Width
65 mm
Depth
65 mm
Height
98.1 mm
Diameter
6.5 cm
Weight
445 g
Package width
137 mm
Package height
95 mm
Package depth
208 mm
Package weight
766.5 g
Technical details
Shipping (inner) case width
29.7 cm
Shipping (inner) case net weight
7.7 kg
Shipping (inner) case length
50.8 cm
Shipping (inner) case height
25 cm
Quantity per pallet (sea)
560 pc(s)
Quantity per pallet (air)
400 pc(s)
Pallet width
120 cm
Pallet length
110 cm
Pallet height (sea)
188.5 cm
Pallet height (air)
138.5 cm
Pallet gross weight (sea)
490.1 kg
Pallet gross weight (air)
357.8 kg
Number of cartons per pallet (sea)
56 pc(s)
Number of cartons per pallet (air)
40 pc(s)
Other features
Compliance industry standards
PoE IEEE 802.3af
Logistics data
Quantity per shipping (inner) case
10 pc(s)
D-Link DCS-4701E security camera IP security camera Indoor & outdoor Bullet 1280 x 720 pixels
| Weight | 1.000000 lbs |
