Performance
Infrared (IR) cut-off filter
Yes
Type
IP security camera
Connectivity technology
Wired
Placement supported
Outdoor
Wide Dynamic Range (WDR)
Yes
Maximum operating distance
30 m
Certification
CE- CE LVD- ICES-003- FCC- C-Tick
Design
Weatherproof
Yes
Form factor
Bullet
Product colour
Grey
Mounting type
Ceiling
International Protection (IP) code
IP66
Camera
Minimum illumination
0.5 lx
Camera shutter speed
1/2.5 - 1/10000 s
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 3.2 mm (1 / 3.2")
Lens system
Maximum aperture number
1.8
Digital zoom
4x
Lens diameter
8.3 cm
Night vision
LED type
IR
Video
Full HD
Yes
Video compression formats
H.264-M-JPEG
Maximum resolution
2560 x 1920 pixels
Video formats supported
H.264-M-JPEG
Supported graphics resolutions
960 x 540-1280 x 720 (HD 720)-1280 x 960-1600 x 1200 (UXGA)-1920 x 1080 (HD 1080)-2560 x 1920
Total megapixels
5 MP
Audio
Voice codecs
G.711
Built-in speaker(s)
Yes
Built-in microphone
Yes
Audio system
2-way
Audio formats supported
AAC-G.711
Network
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Supported network protocols
TCP/IP
Storage
Card reader integrated
Yes
Built-in HDD
No
Compatible memory cards
SD-SDHC
Ports & interfaces
Microphone in
Yes
Connectivity technology
Wired
Security
Motion sensor
Yes
Management features
Reset button
Yes
Power
Power source type
PoE
Power consumption (max)
12.48 W
Power over Ethernet (PoE)
Yes
AC input frequency
50 - 60 Hz
Certificates
Certification
CE- CE LVD- ICES-003- FCC- C-Tick
Operational conditions
Operating temperature (T-T)
-40 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
5 - 95%
System requirements
Windows operating systems supported
Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 8-Windows 8.1-Windows Vista Business-Windows Vista Business x64-Windows Vista Enterprise-Windows Vista Enterprise x64-Windows Vista Home Basic-Windows Vista Home Basic x64-Windows Vista Home Premium-Windows Vista Home Premium x64-Windows Vista Ultimate-Windows Vista Ultimate x64
Weight & dimensions
Weight
1.25 kg
Package width
203 mm
Package height
166 mm
Package depth
270 mm
Package weight
2.46 kg
Packaging content
Number of cameras
1
Technical details
Shipping (inner) case width
28.5 cm
Shipping (inner) case net weight
9.82 kg
Shipping (inner) case length
35 cm
Shipping (inner) case height
43.5 cm
Quantity per pallet (sea)
192 pc(s)
Quantity per pallet (air)
144 pc(s)
Pallet width
120 cm
Pallet length
110 cm
Pallet height (sea)
187.5 cm
Pallet height (air)
144 cm
Pallet gross weight (sea)
523 kg
Pallet gross weight (air)
397.3 kg
Number of cartons per pallet (sea)
48 pc(s)
Number of cartons per pallet (air)
36 pc(s)
Other features
Video compression formats
H.264-M-JPEG
Logistics data
Quantity per shipping (inner) case
4 pc(s)

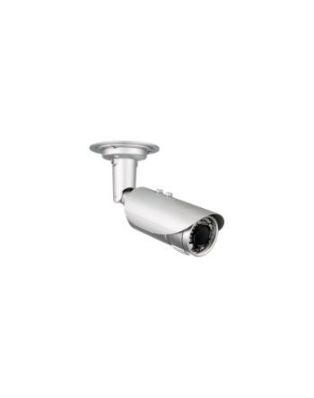

D-Link 5 Megapixel Varifocal Outdoor Network Camera
Weight | 1.000000 lbs |
