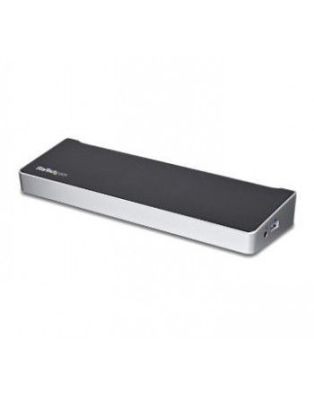

StarTech USB-C Dock - 4K Triple Monitor Laptop Docking Station with Dual DisplayPort & HDMI - 100W Power Delivery - USB-C, 4x USB-A Hub - USB 3.1 Gen 1 Type-C Dock - Windows & Mac
In Stock
|
Ports & interfaces
Combo headphone/mic port
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Headphone connectivity
3.5 mm
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
2
Microphone in
Yes
Headphone outputs
2
DC-in jack
Yes
Connectivity technology
Wired
USB Power Delivery
Yes
USB Power Delivery up to
100 W
Network
Full duplex
Yes
Auto MDI/MDI-X
Yes
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3u
Ethernet LAN
Yes
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN (RJ-45) ports
1
Performance
UASP support
Yes
Maximum digital resolution
5120 x 2880 pixels
Full duplex
Yes
Auto MDI/MDI-X
Yes
On/off switch
Yes
Product colour
Black- Silver
Card reader integrated
No
Cable lock slot
Yes
Data transfer rate
5 Gbit/s
Certification
CE- FCC- TAA- REACH
Rubber feet
Yes
Housing material
Plastic
Technical details
Product colour
Black- Silver
Cable lock slot
Yes
Data transfer rate
5 Gbit/s
Sustainability certificates
RoHS
Quantity per master (outer) case
8 pc(s)
Master (outer) case width
36.5 cm
Master (outer) case length
37 cm
Master (outer) case height
37 cm
Storage
Card reader integrated
No
Power
Input current
2.5 A
Power plug type
Type N
Compatible power plug types
EU-UK
AC input voltage
100 - 240 V
Output voltage
20 V
Output current
7.5 A
Power supply
100 W
Software
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite-Mac OS X 10.11 El Capitan-Mac OS X 10.12 Sierra-Mac OS X 10.14 Mojave-Mac OS X 10.15 Catalina-Mac OS X 10.9 Mavericks
Mac compatibility
Yes
Other operating systems supported
Chrome
Weight & dimensions
Weight
382 g
Width
82 mm
Depth
270 mm
Height
34 mm
Package weight
1.7 kg
Package width
160 mm
Package depth
320 mm
Package height
80 mm
Design
Windows operating systems supported
Windows 10-Windows 10 Education-Windows 10 Education x64-Windows 10 Enterprise-Windows 10 Enterprise x64-Windows 10 Home-Windows 10 Home x64-Windows 10 IOT Core-Windows 10 Pro-Windows 10 Pro x64-Windows 7-Windows 7 Enterprise-Windows 7 Enterprise x64-Windows 7 Home Basic-Windows 7 Home Basic x64-Windows 7 Home Premium-Windows 7 Home Premium x64-Windows 7 Professional-Windows 7 Professional x64-Windows 7 Starter-Windows 7 Starter x64-Windows 7 Ultimate-Windows 7 Ultimate x64-Windows 7 x64-Windows 8-Windows 8 Enterprise-Windows 8 Enterprise x64-Windows 8 Pro-Windows 8 Pro x64-Windows 8 x64-Windows 8.1-Windows 8.1 Enterprise-Windows 8.1 Enterprise x64-Windows 8.1 Pro-Windows 8.1 Pro x64-Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite-Mac OS X 10.11 El Capitan-Mac OS X 10.12 Sierra-Mac OS X 10.14 Mojave-Mac OS X 10.15 Catalina-Mac OS X 10.9 Mavericks
Product colour
Black- Silver
Cable lock slot
Yes
Certification
CE- FCC- TAA- REACH
Rubber feet
Yes
Packaging data
Package weight
1.7 kg
Package width
160 mm
Package depth
320 mm
Package height
80 mm
Packaging content
Manual
Yes
Cables included
USB Type-C
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 70%
Certificates
Certification
CE- FCC- TAA- REACH
Logistics data
Quantity per master (outer) case
8 pc(s)
Master (outer) case width
36.5 cm
Master (outer) case length
37 cm
Master (outer) case height
37 cm
Other features
Chipset
DisplayLink - DL-6950- Genesys Logic - GL3523- Genesys Logic - GL3523S- Texas Instruments - TPS65982- Parade Technologies - PS176
StarTech USB-C Dock - 4K Triple Monitor Laptop Docking Station with Dual DisplayPort & HDMI - 100W Power Delivery - USB-C, 4x USB-A Hub - USB 3.1 Gen 1 Type-C Dock - Windows & Mac
| Weight | 1.650000 lbs |
