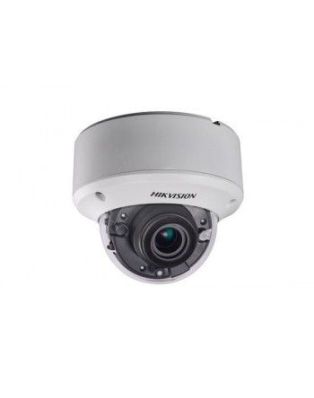

Hikvision Digital DS-2CC52D9T-AVPIT3ZE security camera IP security camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels
In Stock
|
SPECIFICATIONS
Product Description
Hikvision Turbo HD Camera DS-2CC52D9T-AVPIT3ZE - surveillance camera
Device Type
Surveillance camera - fixed dome - outdoor indoor - vandal / weatherproof
Dimensions (WxDxH)
5.7 in x 5.7 in x 4.9 in
Weight
4.41 lbs
Connectivity Technology
Wired
Camera
Color - Day&Night - NTSC PAL
Optical Zoom
4.3 x
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Video Modes
1080p 1080/30p 1080/25p
Optical Sensor Type
PS CMOS 2 MP
Focal Length Control
Vari-focal
Focal Length
2.8 mm - 12 mm
Lens Mounting
F14 mount
Lens Iris
Auto iris
Panning Range (degree)
0 to 355
Tilting Range (degree)
0 to 75
Interfaces
Composite video AHD
Voltage
DC 12 V / AC 24 V / PoC
Environmental Parameters (operating)
-40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity
General
Device Type
Surveillance camera
Connectivity Technology
Wired
Width
5.7 in
Depth
5.7 in
Height
4.9 in
Weight
4.41 lbs
Camera
Video Format
NTSC PAL
Motion Detection
Yes
Video Modes
1080p 1080/30p 1080/25p
Exposure Range
1/25 sec - 1/50000 sec
Minimum Illumination
0.003 lux F1.2 - AGC on ¦ 0 lux - infrared LEDs on
Infrared LEDs
Yes
Infrared Distance
131 ft
Frame Rate (max)
30 frames per second
Image Sensor
Type
2 MP PS CMOS
Effective Pixels
1920 x 1080
Lens Construction
Type
F14 mount - vari-focal
Optical Zoom
4.3 x
Focal Length
2.8 mm - 12 mm
Lens Iris
Auto iris
Horizontal Field of View (degree)
32.1 - 98
Panning
Range (degree)
0 to 355
Tilting
Range (degree)
0 to 75
Interfaces
Video
Composite video AHD
Expansion / Connectivity
Ports
AHD ¦ Composite video - BNC
Miscellaneous
Compliant Standards
IP67 IK10
Power
Power Requirements
DC 12 V / AC 24 V / PoC
Power Device
6 Watt
Environmental Parameters
Min Operating Temperature
-40 °F
Max Operating Temperature
140 °F
Relative Humidity (operating)
0 - 90% (non-condensing)
Hikvision Digital DS-2CC52D9T-AVPIT3ZE security camera IP security camera Indoor & outdoor Dome Ceiling 1920 x 1080 pixels
| Length | 14.48 in |
| Width | 14.48 in |
| Height | 12.45 in |
| Weight | 2.000000 lbs |
