SPECIFICATIONS
Product Description

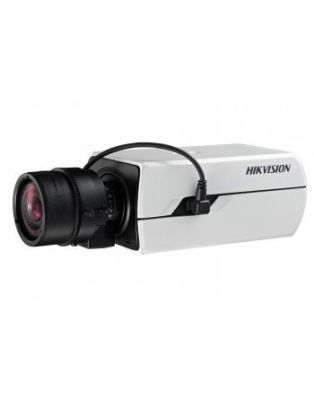

Hikvision TurboHD 4K Ultra-Low Light Box Camera DS-2CE37U8T-A
Device Type
Surveillance camera (no lens) - fixed
Dimensions (WxDxH)
5.7 in x 2.7 in x 2.3 in
Weight
18.34 oz
Connectivity Technology
Wired
Camera
Color - Day&Night - NTSC PAL
Max Resolution
3840 x 2160
Frame Rate (max)
30 frames per second
Video Modes
4K
Optical Sensor Type
CMOS 8.3 MP
Lens Mounting
C/CS-mount
Lens Iris
Auto iris (DC)
Interfaces
Composite video HD-TVI
Control Interface
RS-485
Voltage
DC 12 V / AC 24 V
Environmental Parameters (operating)
-40 °F - 140 °F; 90% (non-condensing) relative humidity
General
Device Type
Surveillance camera (no lens)
Connectivity Technology
Wired
Width
5.7 in
Depth
2.7 in
Height
2.3 in
Weight
18.34 oz
Camera
Type
Color - Day&Night - fixed
Video Format
NTSC PAL
Max Digital Video Resolution
3840 x 2160
Video Modes
4K
Exposure Range
1/10000 sec
Frame Rate (max)
30 frames per second
Image Sensor
Type
8.3 MP CMOS
Lens Construction
Type
C/CS-mount
Lens Iris
Auto iris (DC)
Interfaces
Video
Composite video HD-TVI
Control Interface
RS-485
Expansion / Connectivity
Ports
Composite video - BNC ¦ HD-TVI
Power
Power Requirements
DC 12 V / AC 24 V
Environmental Parameters
Min Operating Temperature
-40 °F
Max Operating Temperature
140 °F
Relative Humidity (operating)
90% (non-condensing)
Hikvision DS-2CE37U8T-A security camera Box 3840 x 2160 pixels
Length | 2.7 in |
Width | 5.7 in |
Height | 2.3 in |
Weight | 1.000000 lbs |
